Aima Key West

Available in colors:

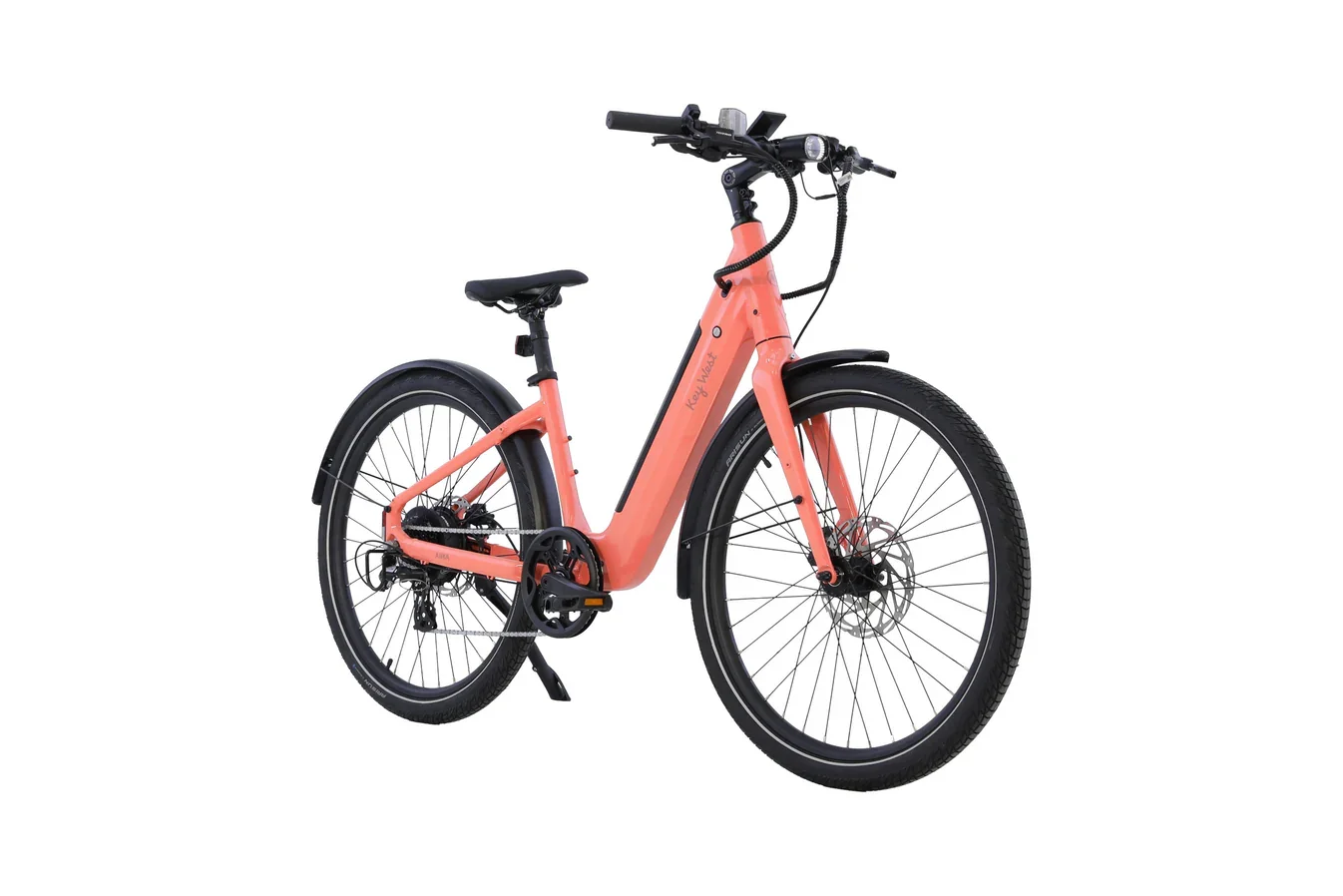

• Coral Brush

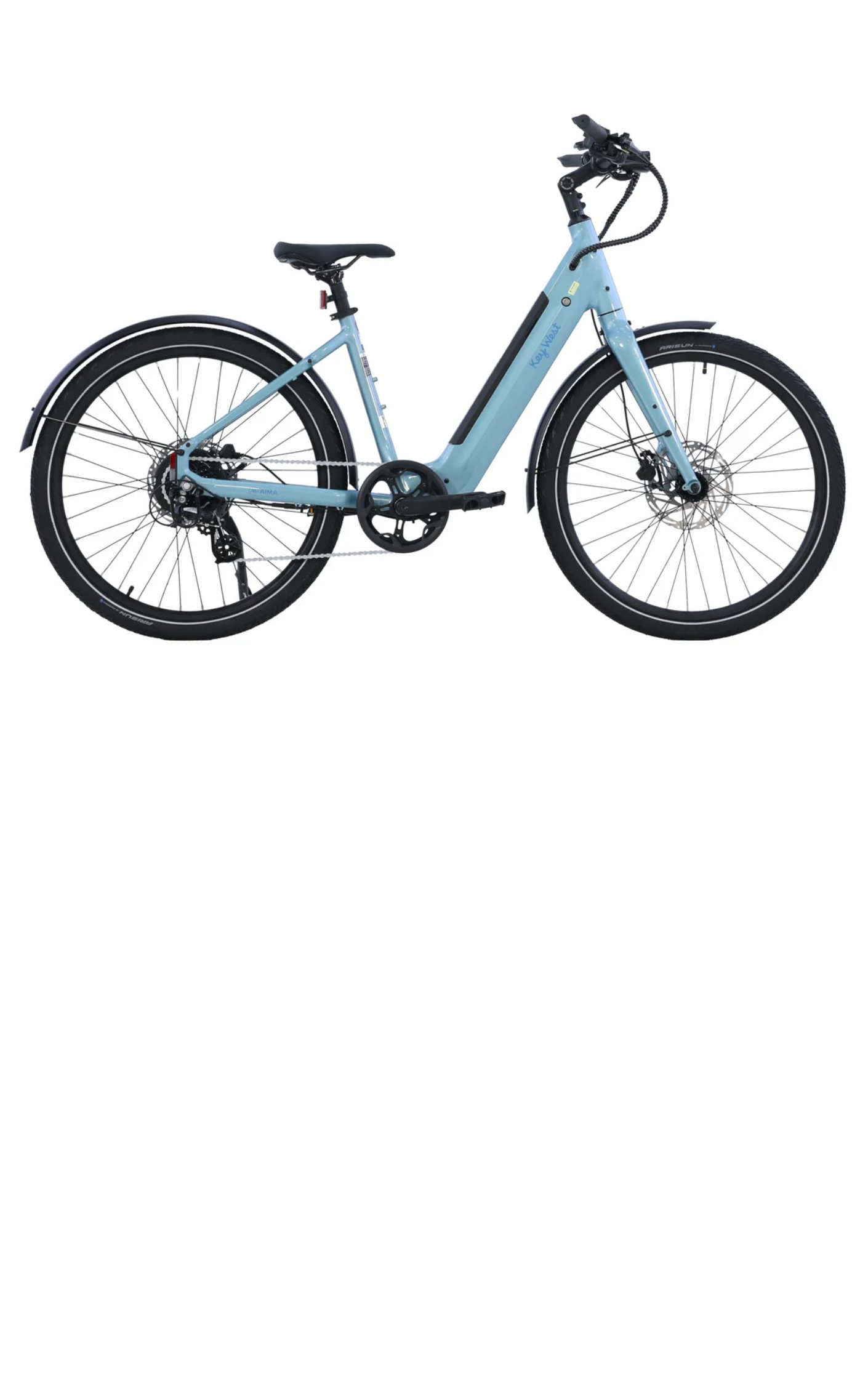

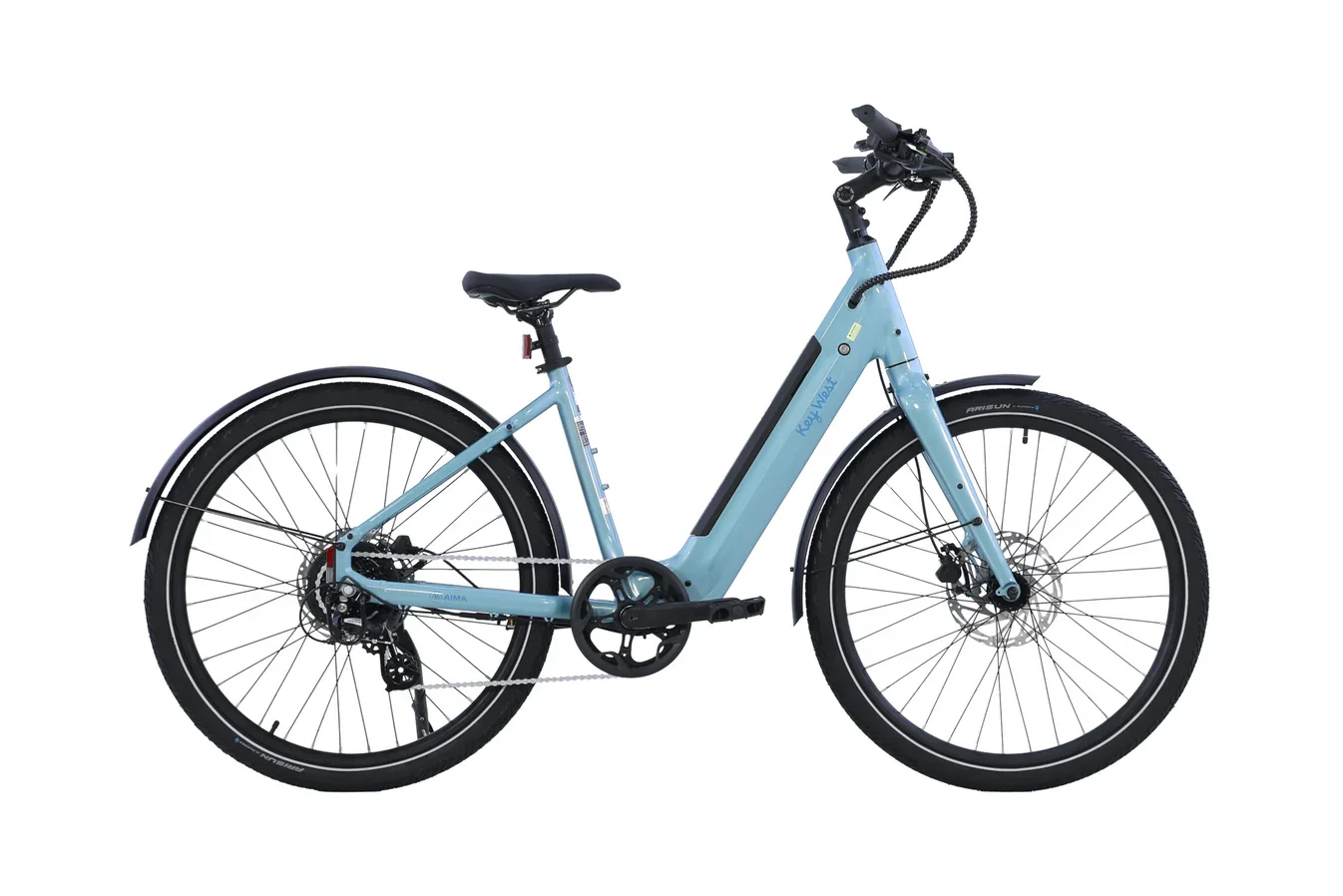

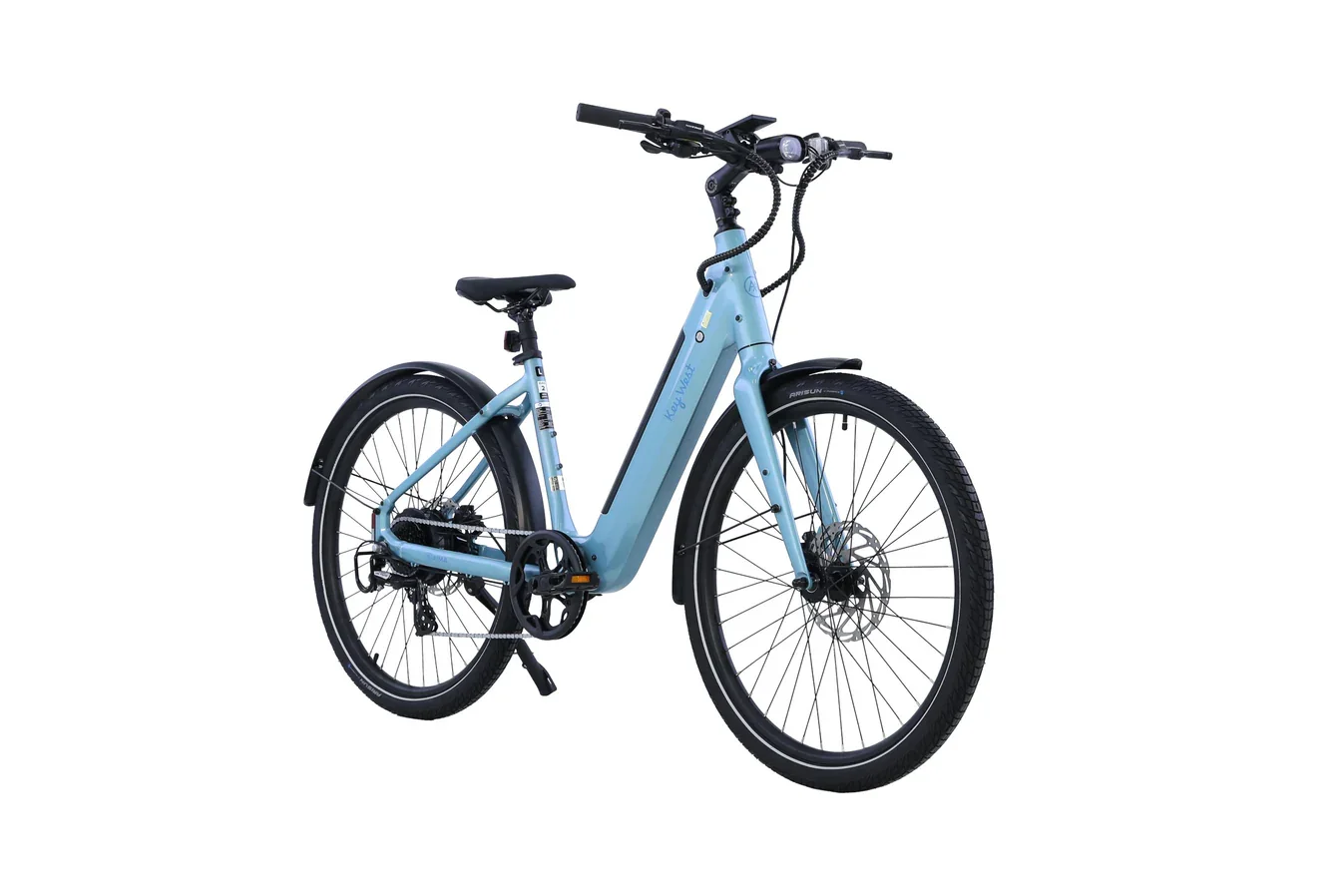

• Coastal blue

Key West, FL – The southern tip of the US. Where One Road Ends, Another Begins.

It's the end of the road for most, but it's right where the Key West's journey begins! At 54lbs, the Key West is the lightest ebike in our line up and is ready for you to embark on your next journey. Take it to the beach, cruise around your neighborhood, or crush your morning commute, the Key West does it all.

Lightweight for ease of putting on your bike rack or in the back of your truck. Brand new BAFANG TFT Smart Display keeps you connected and in control of customizing your riding experience. Integrated lighting and turn signals keep you seen and our signature oversized 203mm brake rotors help you stop on a dime. The Key West keeps you comfortable with an adjustable stem and ergonomic hand grips.

Key West is the next generation of lightweight cruiser ebikes made by AIMA!

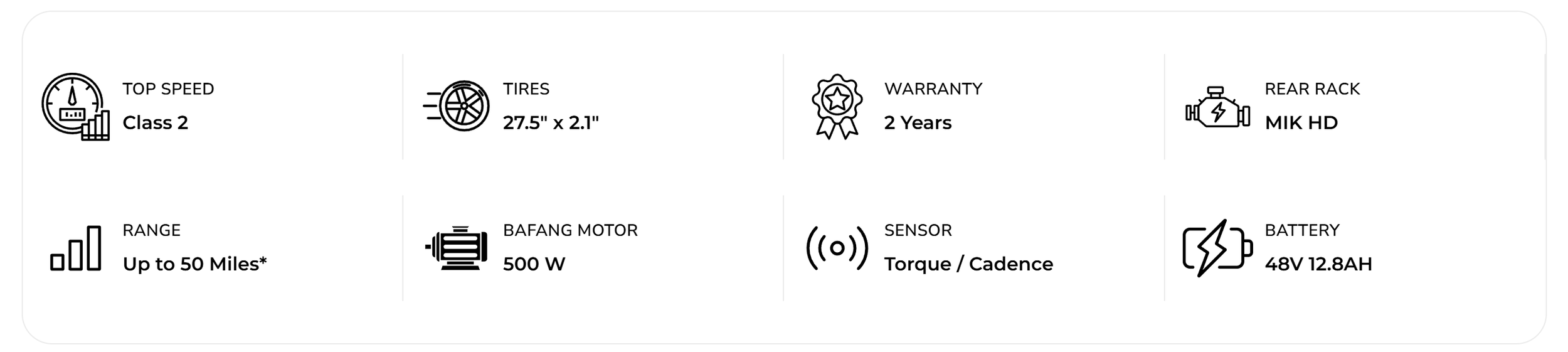

Specifications

Motor
500W, 48V Brushless Rear Hub Motor

Throttle
Throttle on Demand

Display
BAFANG C010 4.0" TFT Smart Display with Navigation, Incoming Call & Text Alerts

Top Speed
Up to 28 MPH (Pedal Assist) / 20 MPH (Throttle)

Battery
Removable Internal Lithium-ion, 48V 12.8Ah (614Wh)

Range
24–50 Miles

Pedal Assist
5 Levels (Torque & Cadence Modes)

Charger
48V 3A Fast Charger (≈5 Hours Full Charge)

Frame & Suspension

Frame
6061 Single-Butted Aluminum Alloy with Internal Battery

Fork
Lightweight Rigid Aluminum Fork

Weight
54 lbs (without fenders)

Max Weight Capacity
320 lbs

Drivetrain & Brakes

Crankset
170mm with 46T Chainring

Shifter
Shimano 8-Speed

Cassette
8-Speed, 12–32T

Chain
8-Speed

Brakes
Tektro Hydraulic Disc Brakes, 203mm Rotors

Wheels & Tires

Rims
Double-Wall Aluminum Alloy

Spokes
Black Stainless Steel, 12G Front / 12G Rear

Front Hub
Aluminum Alloy Disc Hub

Tires
27.5" x 2.1"

Tubes
Butyl Rubber

Components

Handlebars
Aluminum Alloy, Double Wall, 31.8mm, 680mm

Stem
Threadless, 31.8mm, 10°–80° Adjustable Rise
(S: 90mm | M: 110mm)

Grips
Ergonomic Comfort

Saddle
AIMA Lightweight Performance Saddle

Seatpost
Aluminum Alloy, 30.9mm, 2-Bolt Clamp, 300mm

Seat Clamp
34.9mm Quick Release

Pedals
9/16" Alloy Platform

Kickstand
Aluminum Alloy

Headset
Sealed Bearing

Lighting & Safety

Lighting
Integrated Headlight, Tail Light & Turn Signals
