Joy Carbon

Available in colors:

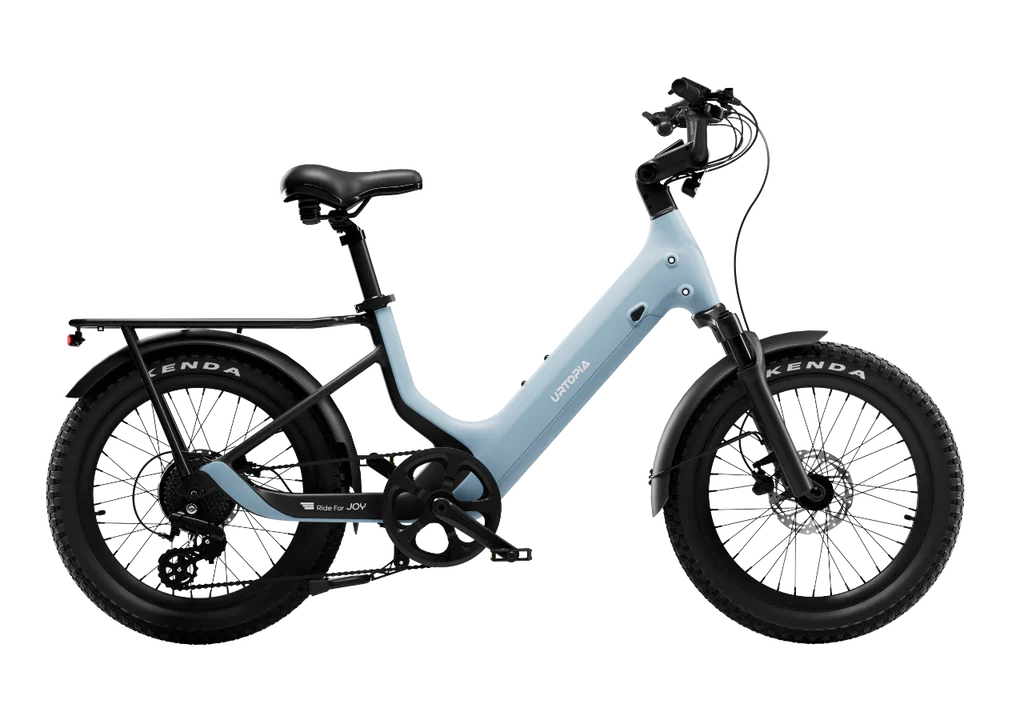

• Glacier Blue

• Rose Red

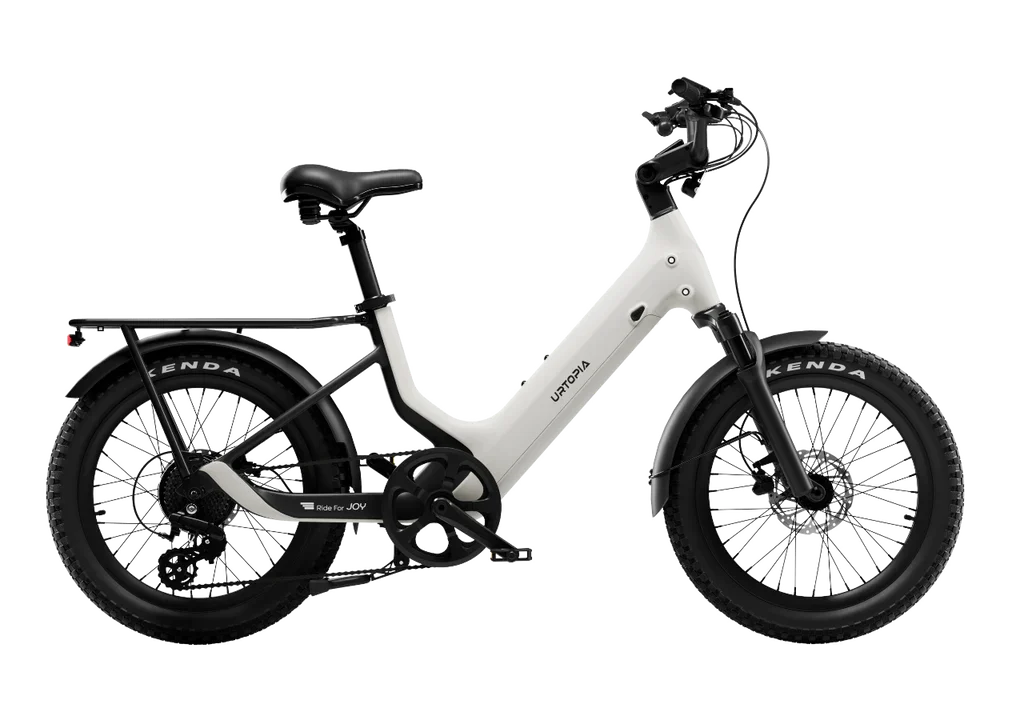

• Creme

• Charcoal Grey

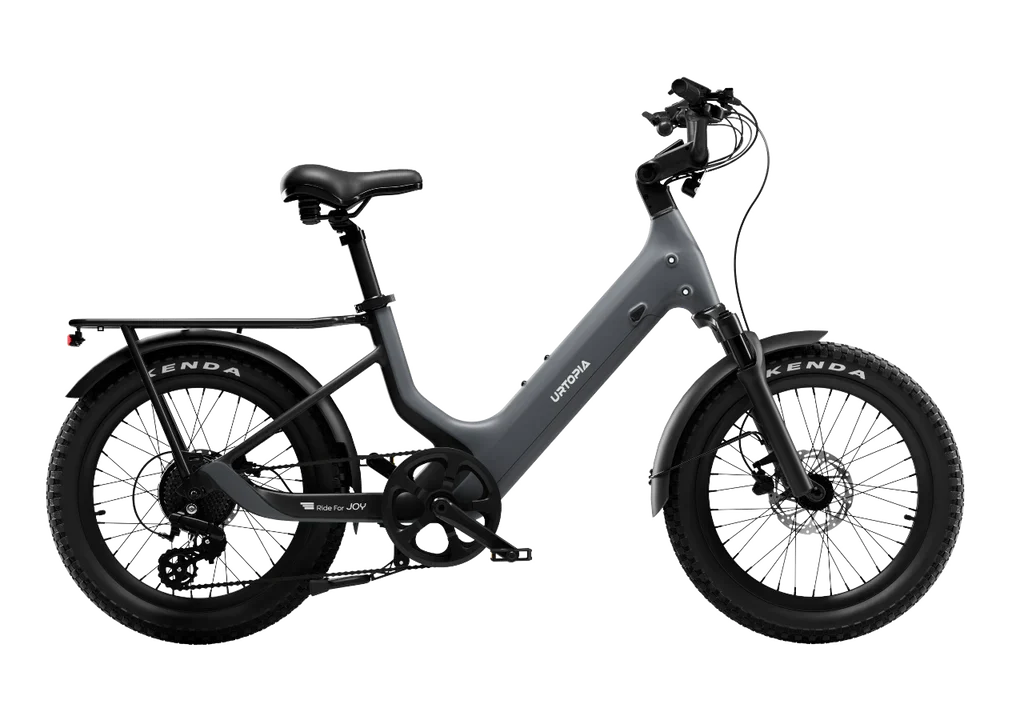

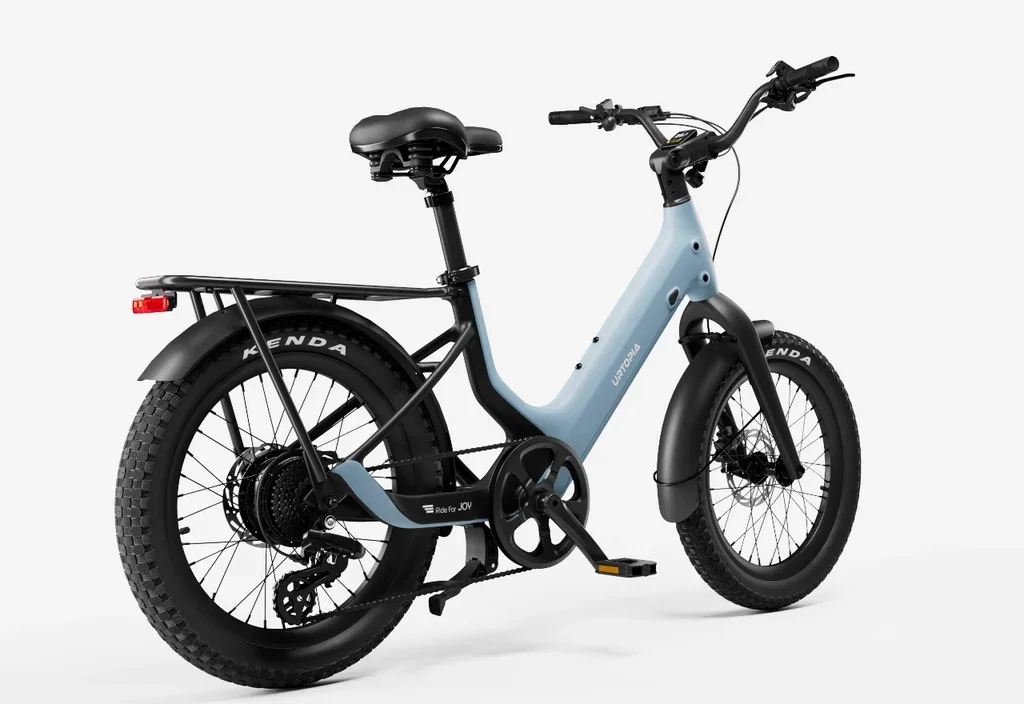

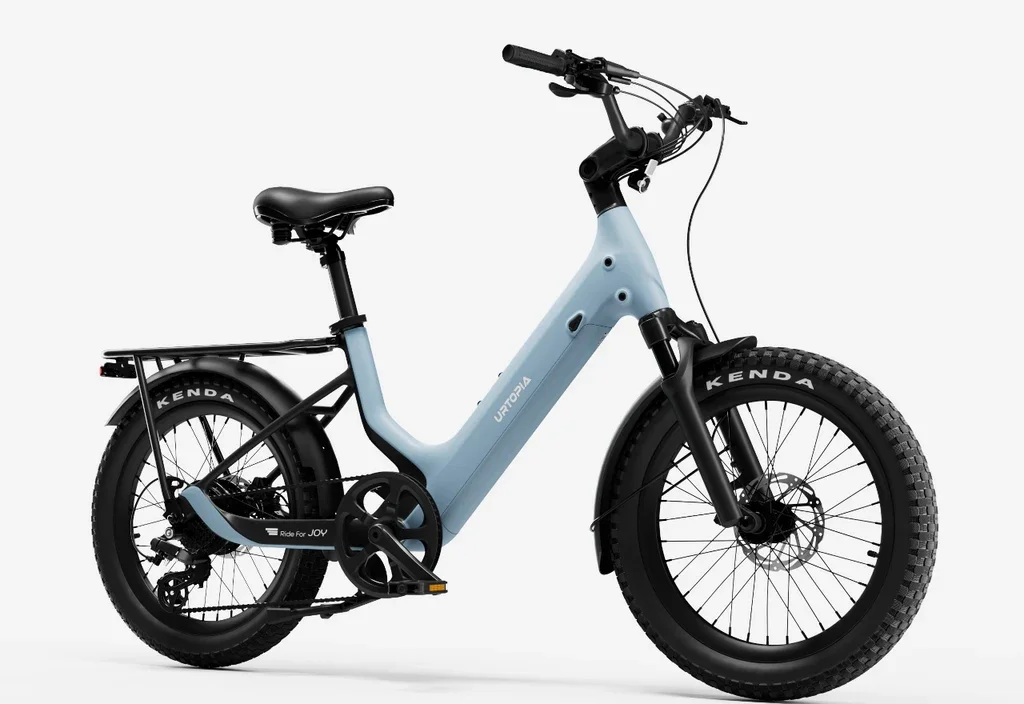

The Joy Carbon Fat Tire Ebike is 30% lighter than aluminum while ensuring exceptional strength and durability. Its flowing, ribbon-inspired chainstays evoke motion, while the seat-tube-free frame is designed to turn heads and stand out.

Net Weight
45 lbs (without accessories)

Frame Material
Carbon Fiber

Range
Up to 70 Miles
Tested with a 180 lb rider in ECO mode on flat roads without throttle

Top Speed
20 MPH (default)
25 MPH (unlockable)

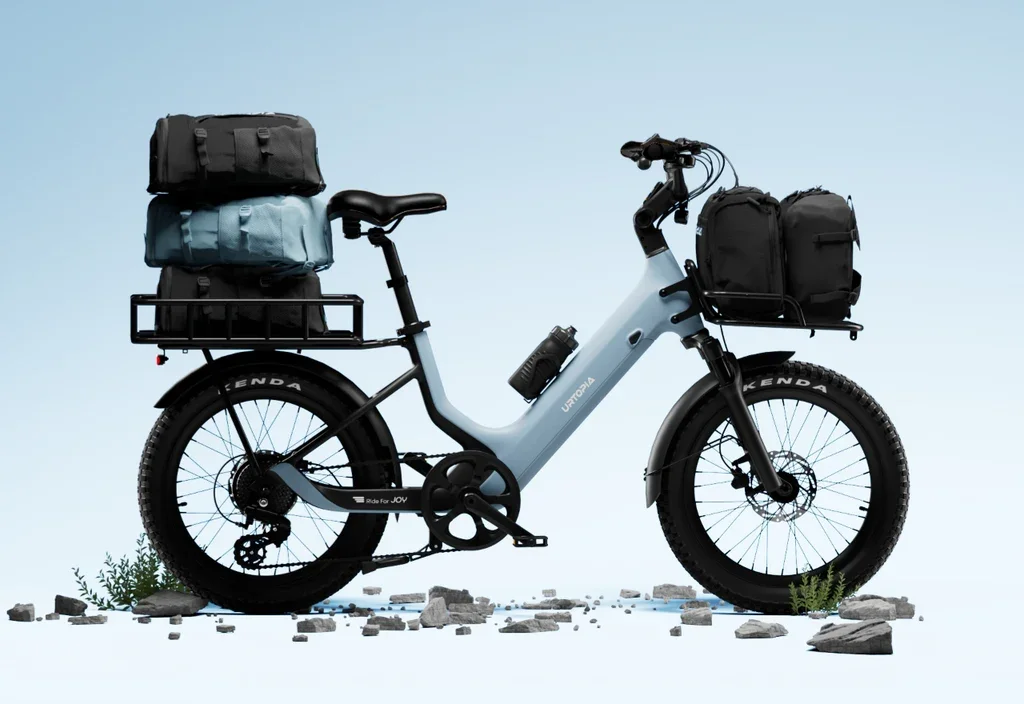

Total Weight Limit
330 lbs

Recommended Rider Height
4’11” – 6’3”

IP Rating
IP65

Brakes
Hydraulic Disc Brakes with Power Cut-Off Sensor

Wheels & Tires
Kenda 20" x 3.0" Puncture-Proof Fat Tires
Thru-Axle

E-Bike System

Class
Class 2

Motor
500W Rear Hub Motor
Peak Power: 750W | Max Torque: 60Nm

Throttle
Yes (up to 20 MPH)

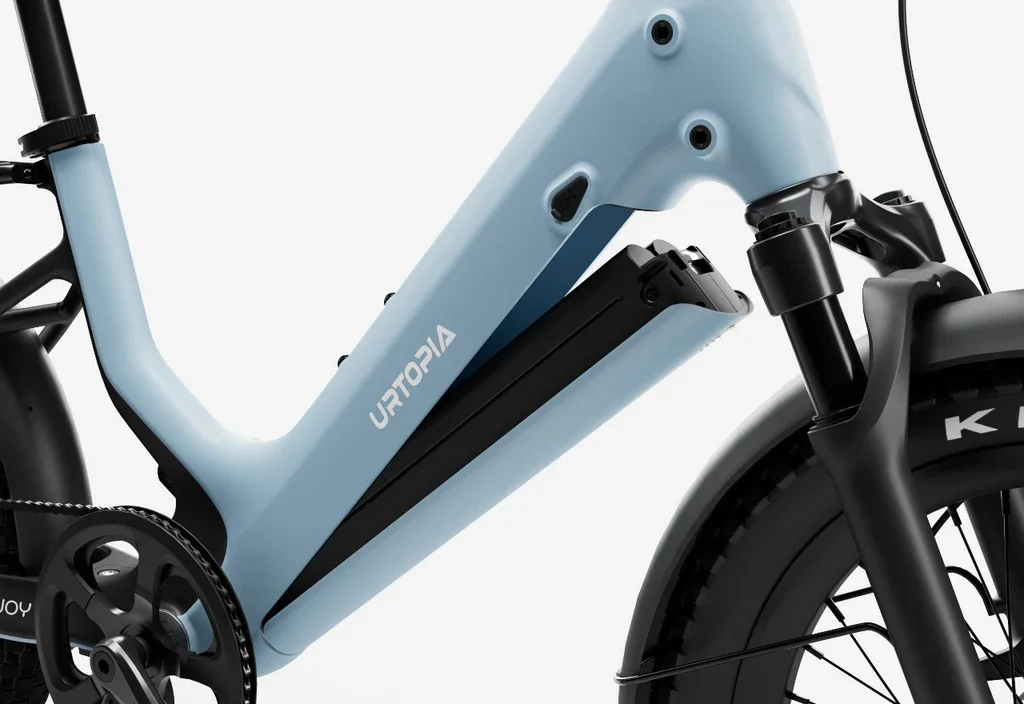

Battery
529.2Wh Samsung Lithium-Ion Battery
UL-2271 Certified

Pedal Assist
4 Levels: Eco, Tour, Boost, Turbo

Charger
3.5-Hour Fast Charger

Sensor
Torque Sensor

Lighting & Safety

Front Light
External Headlight, 30 Lux

Rear Light
External Tail Light with Brake Sensing
Rear Rack Mounted

Drivetrain

Chainring
50T

Crankset
Aluminum Alloy, 152mm

Cassette
12–32T, 8-Speed

Chain
Shimano 8-Speed

Rear Derailleur
Shimano 8-Speed

Shifter
8-Speed Trigger

Pedals
PP Pedals, 103 × 84 × 24mm

Cockpit & Comfort

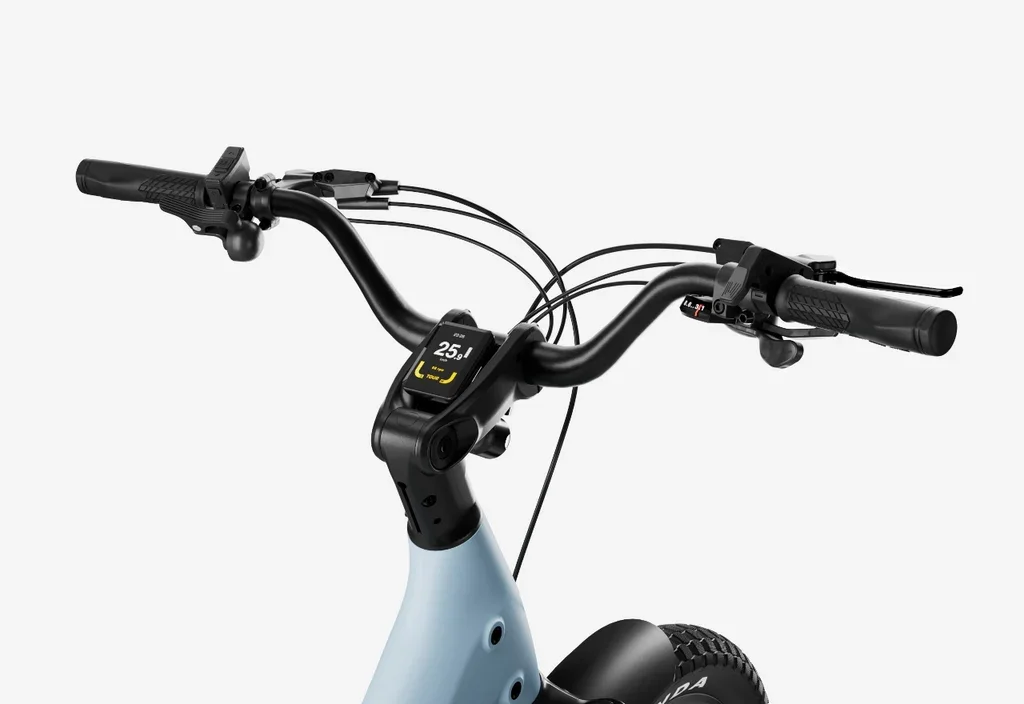

Handlebar
Aluminum Alloy with 0°–60° Adjustable Extender

Fork
50mm Travel Suspension Fork with Preload Adjustment

Grips
PU Leather

Saddle
Comfort Saddle, 255 × 222 × 104mm

Seatpost
Aluminum Alloy, 2-Stage Adjustable Design

• Diameter: Ø30.9mm (inner) / Ø34.9mm (outer)

• Adjustment Range: 100mm (inner) / 120mm (outer)
