Carbon Fusion Pro

Available in colors:

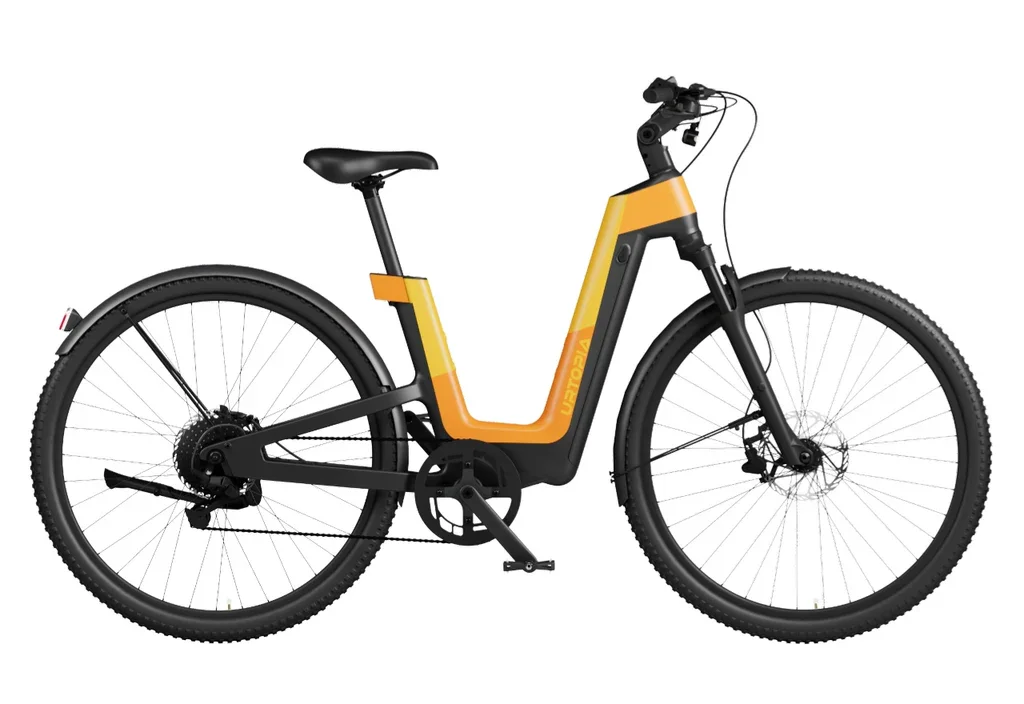

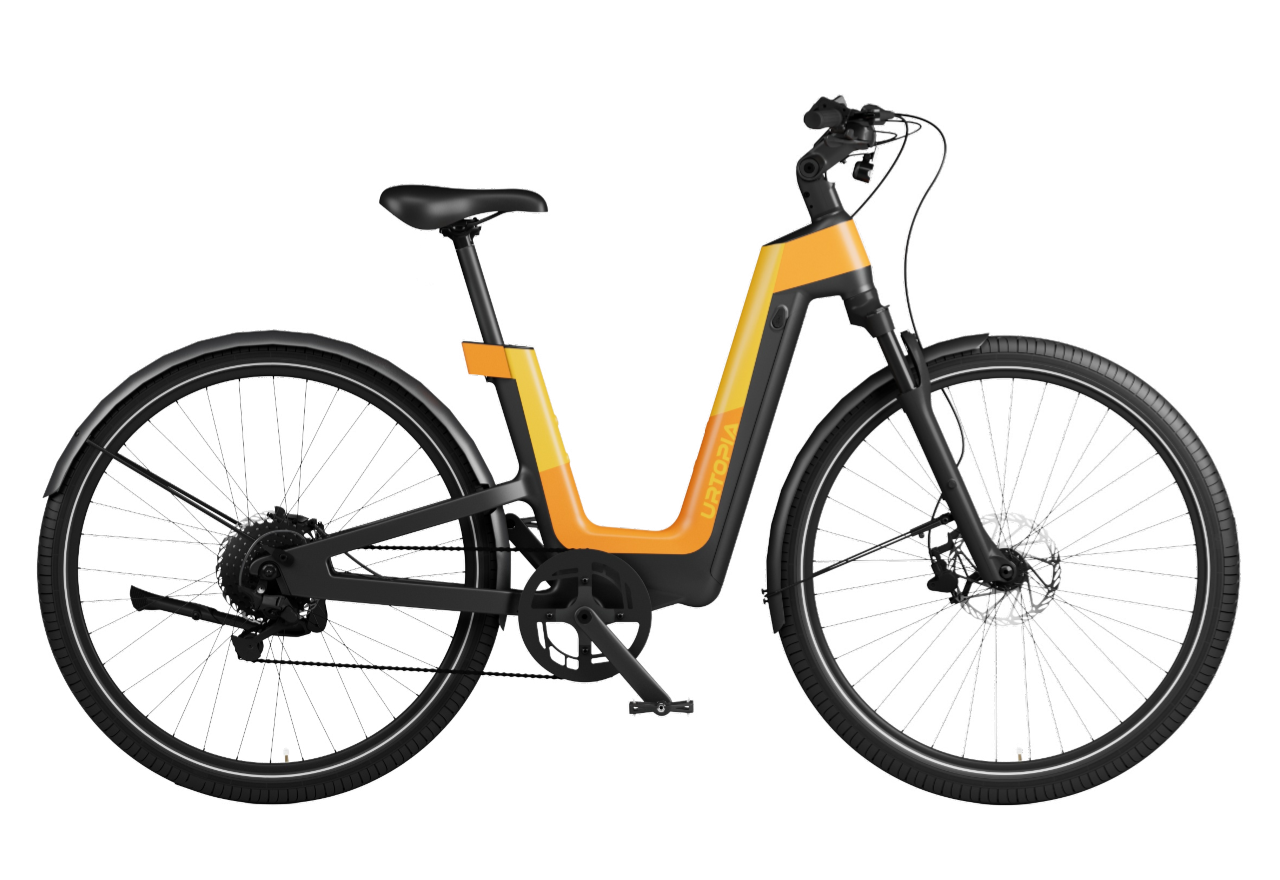

• Vital Orange

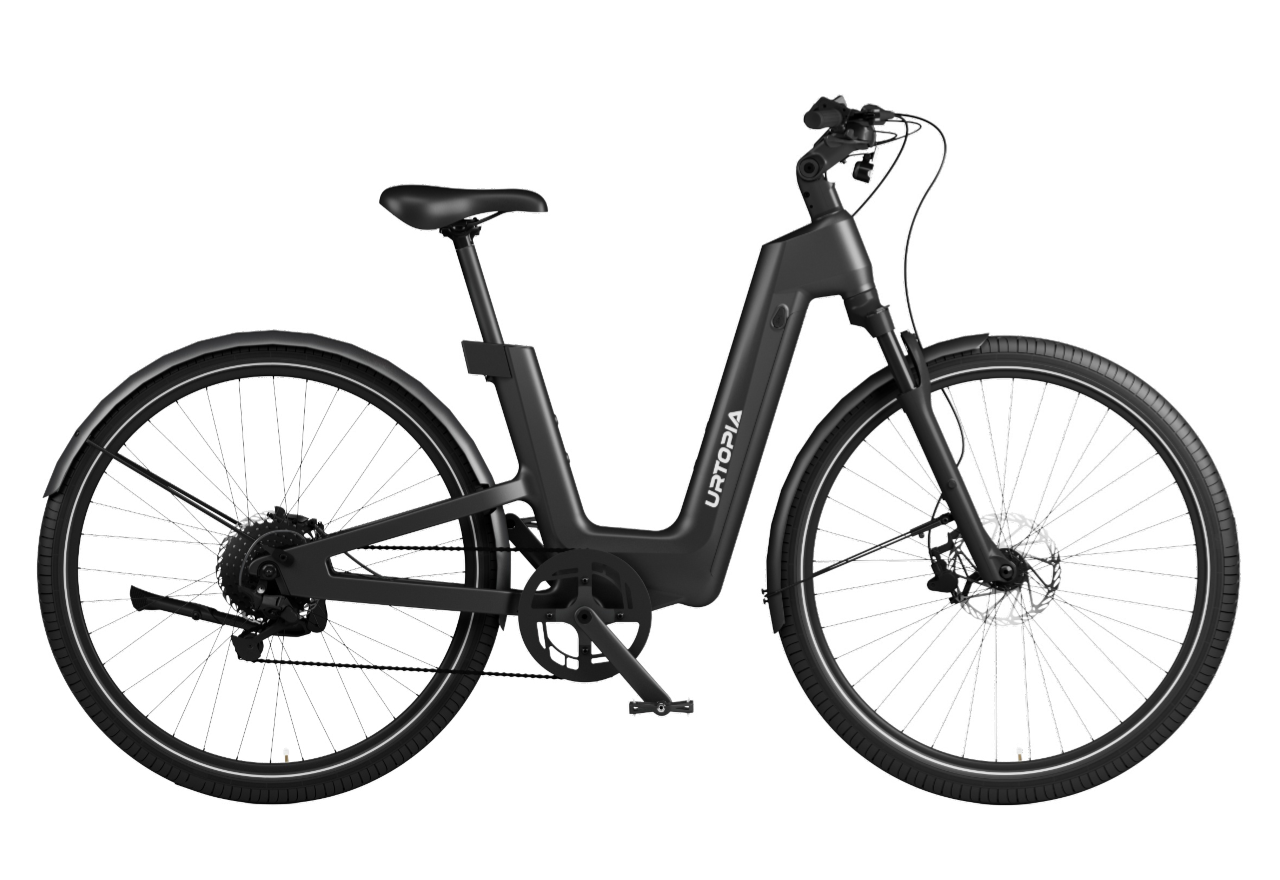

• Blazing Black

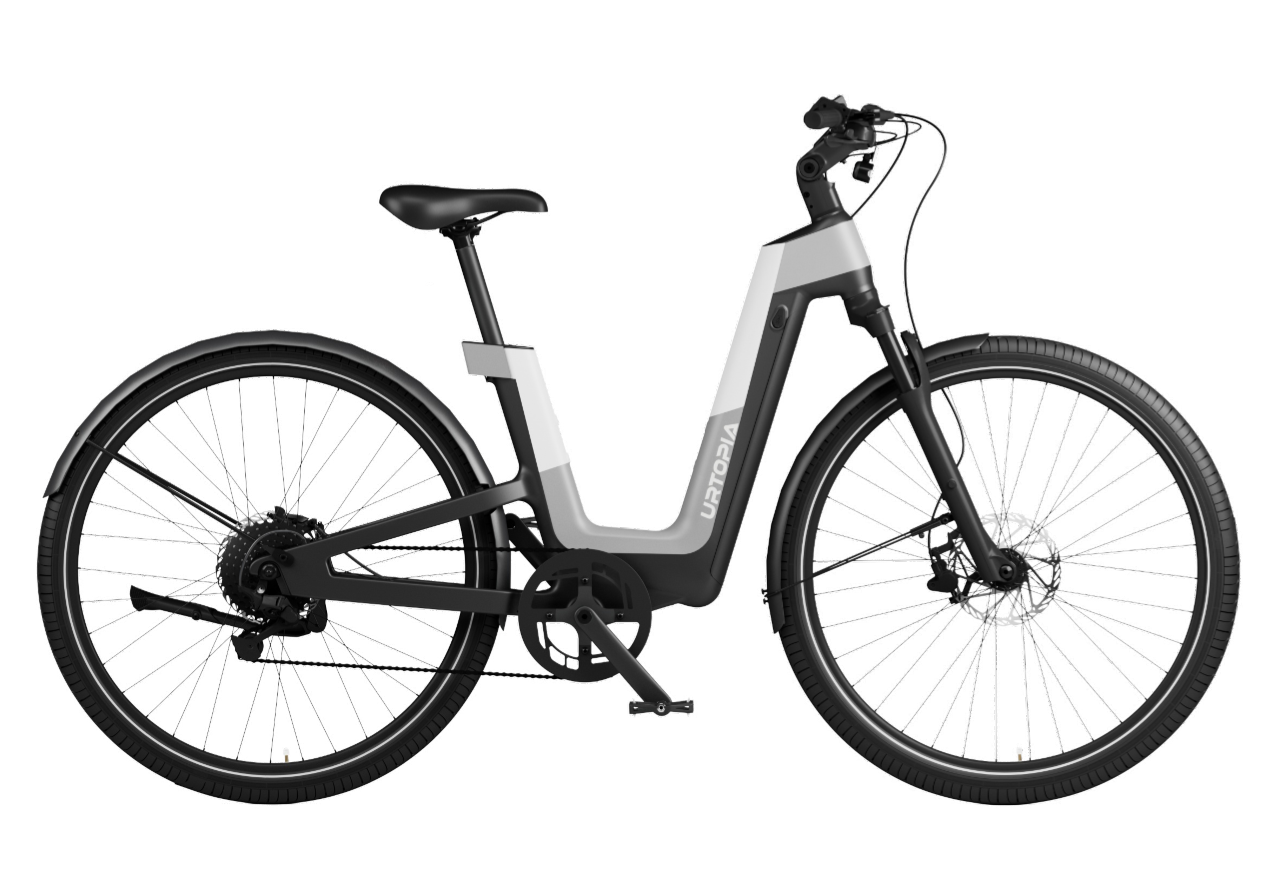

• Elegant Grey

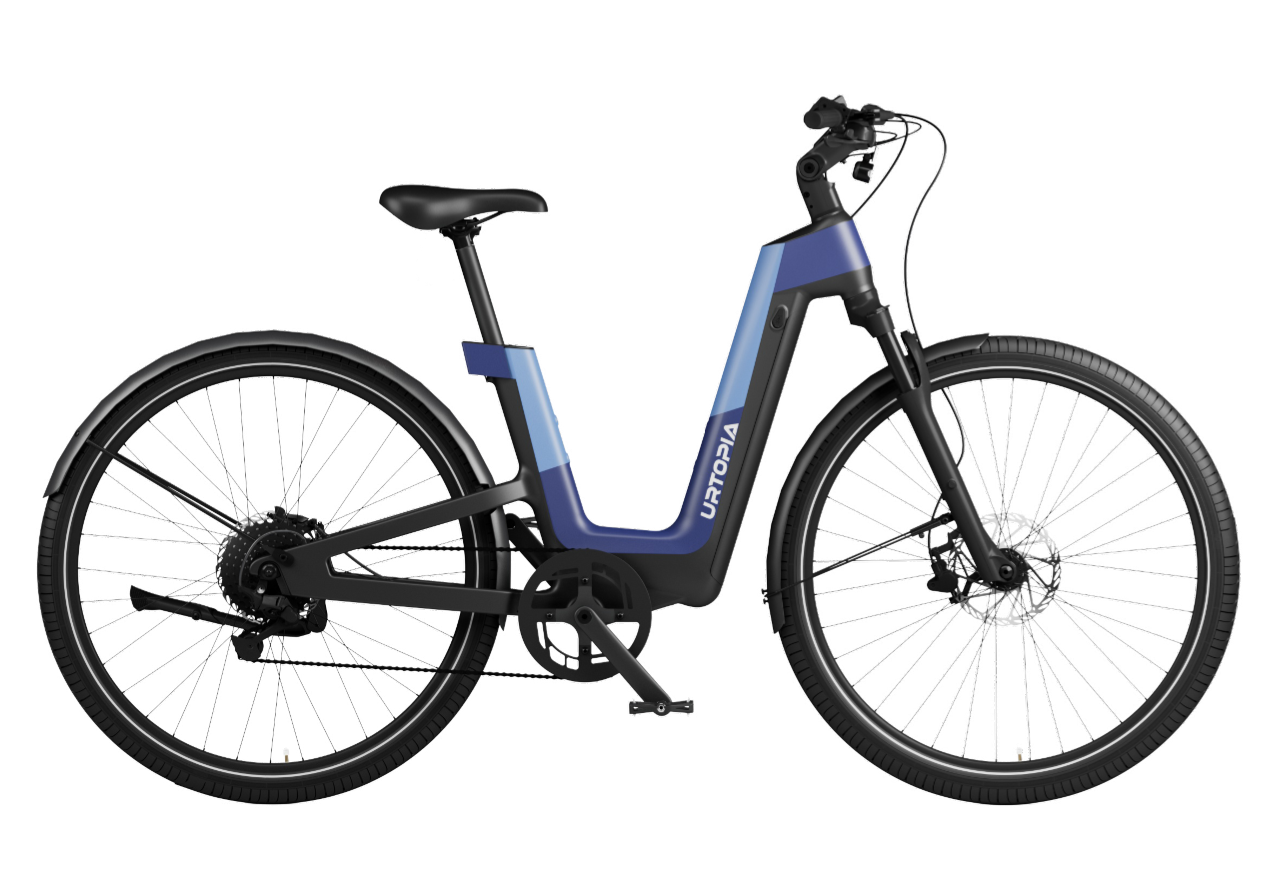

• Deep Sea Blue

Sleek lines, carbon fiber elegance, and the power to roam-Fusion Pro looks as good as it rides. Glide through nature, feel the breeze, and rediscover the joy of effortless exploration.

Net Weight
48 lbs (without accessories)

Frame Material
Carbon Fiber

Range
Up to 75 Miles
Up to 120 Miles with Dual Battery
Tested with a 180 lb rider in ECO mode on flat roads without throttle

Top Speed
20 MPH (default)
25 MPH (unlockable)

Total Weight Limit
330 lbs

Recommended Rider Height
5’3” – 6’3”

Water Resistance
IP65

Brakes
TEKTRO Hydraulic Disc Brakes with Power Cut-Off Sensor

Wheels & Tires
Kenda 29" × 2.05" Puncture-Proof Tires

E-Bike System

Class
Class 2 (default)
Class 3 (unlockable)

Motor
500W Rear Hub Motor
Peak Power: 1000W | Max Torque: 60Nm

Throttle
Yes (up to 20 MPH)

Battery
529.2Wh Lithium-Ion Battery
UL-2271 Certified | Removable

Pedal Assist
4 Levels

Charger
3.5-Hour Fast Charger

Display
Color LCD Display

Sensor
Torque Sensor

Lighting & Safety

Front Light
External Headlight, 40 Lux

Rear Light
StVZO Rear Light (Non-ARES)

Drivetrain

Chainring
44T

Crankset
Aluminum Alloy, 170mm

Cassette
11–40T, 8-Speed

Chain
YBN S8e, Silver

Rear Derailleur
Shimano Acera 8-Speed

Shifter
8-Speed Trigger

Pedals
9/16" Alloy Platform

Cockpit & Comfort

Handlebar
Aluminum Alloy with 0°–60° Adjustable Extender

Fork
ZOOM 188NS AMS 700C Suspension Fork
60mm Travel

Grips
Durable, Ergonomic, Lock-On Grips

Seatpost
Aluminum Alloy, Ø31.6mm
