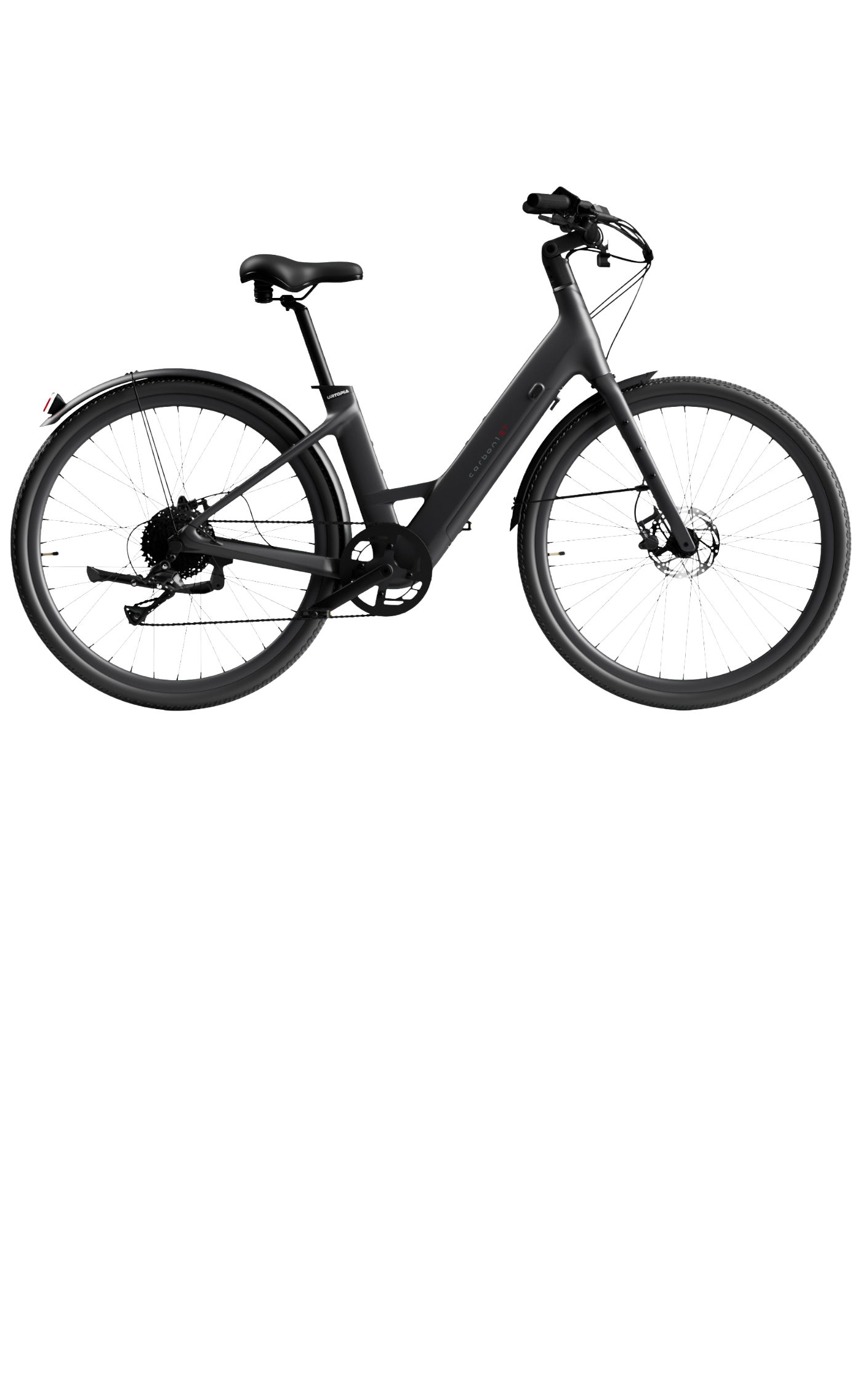

Carbon Classic Step Thru

Available in colors:

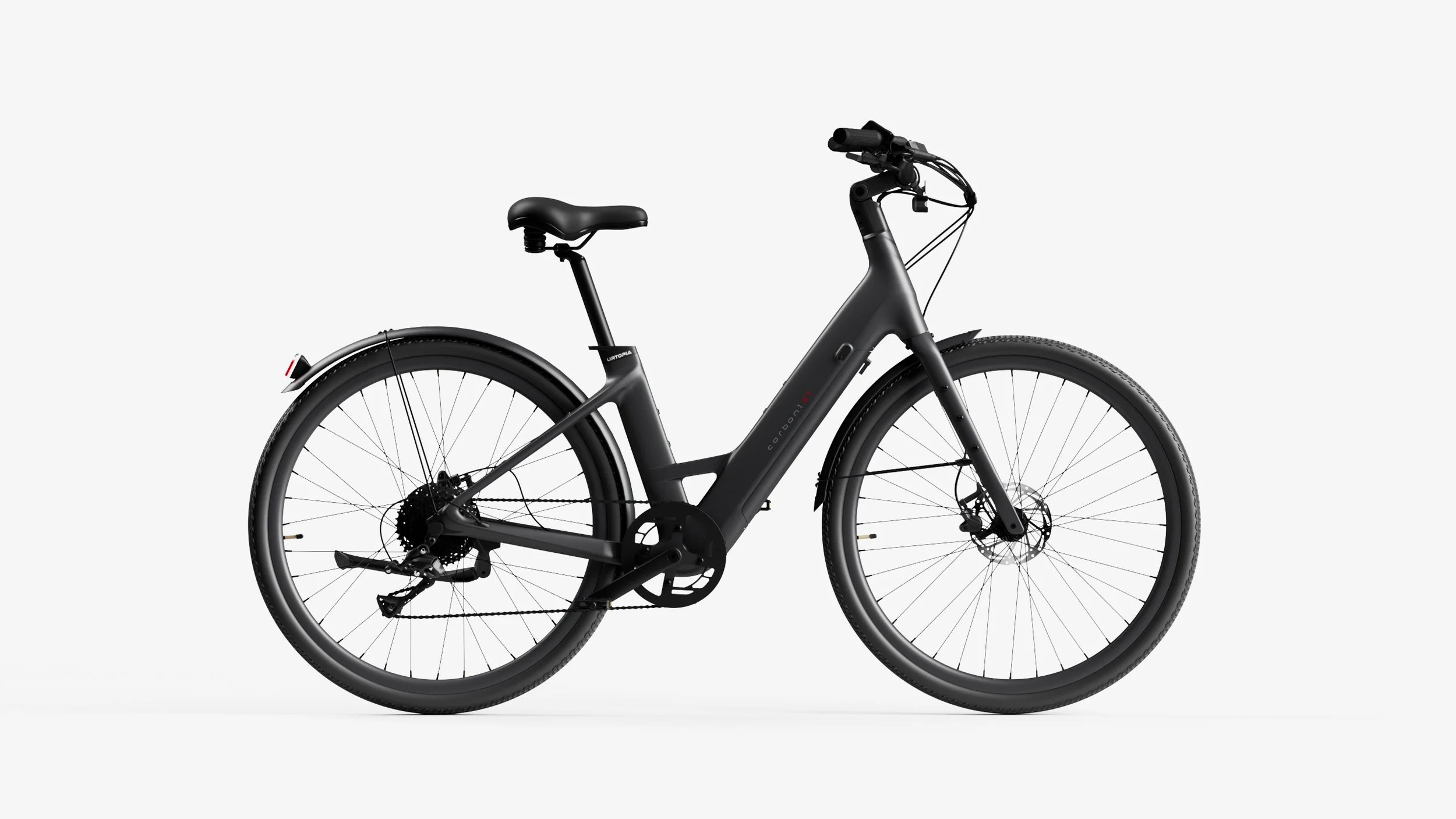

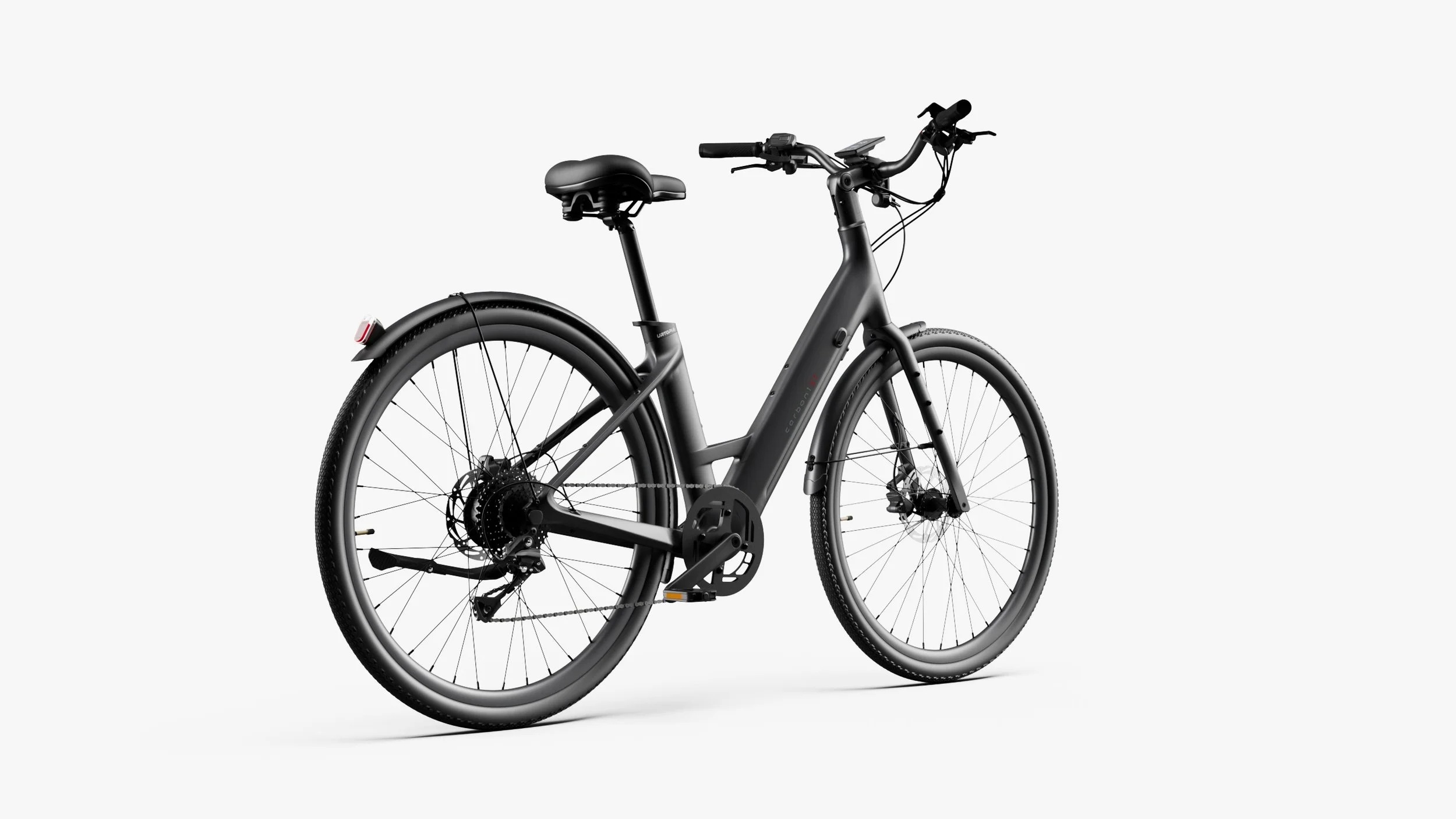

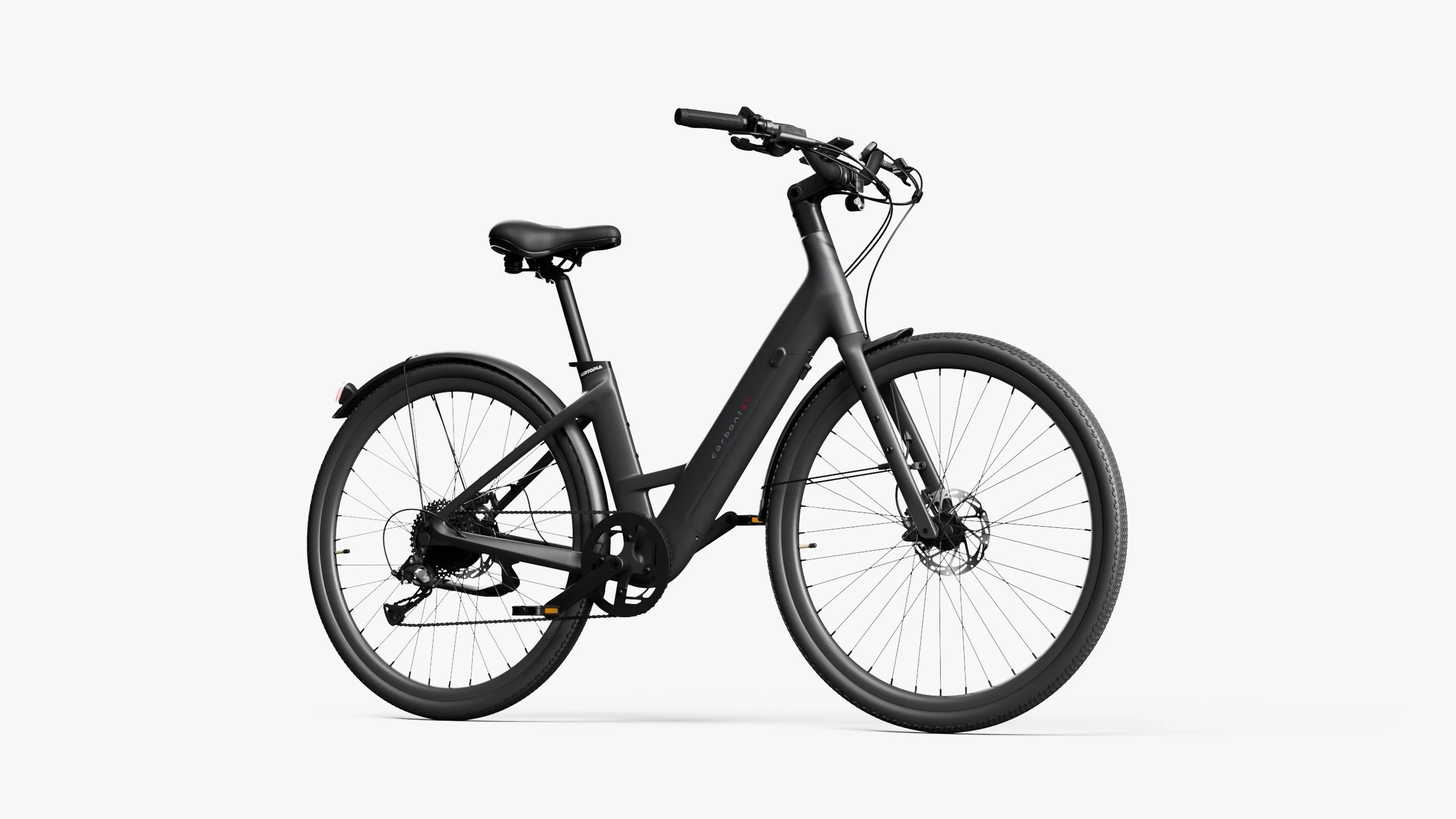

• Matte Black

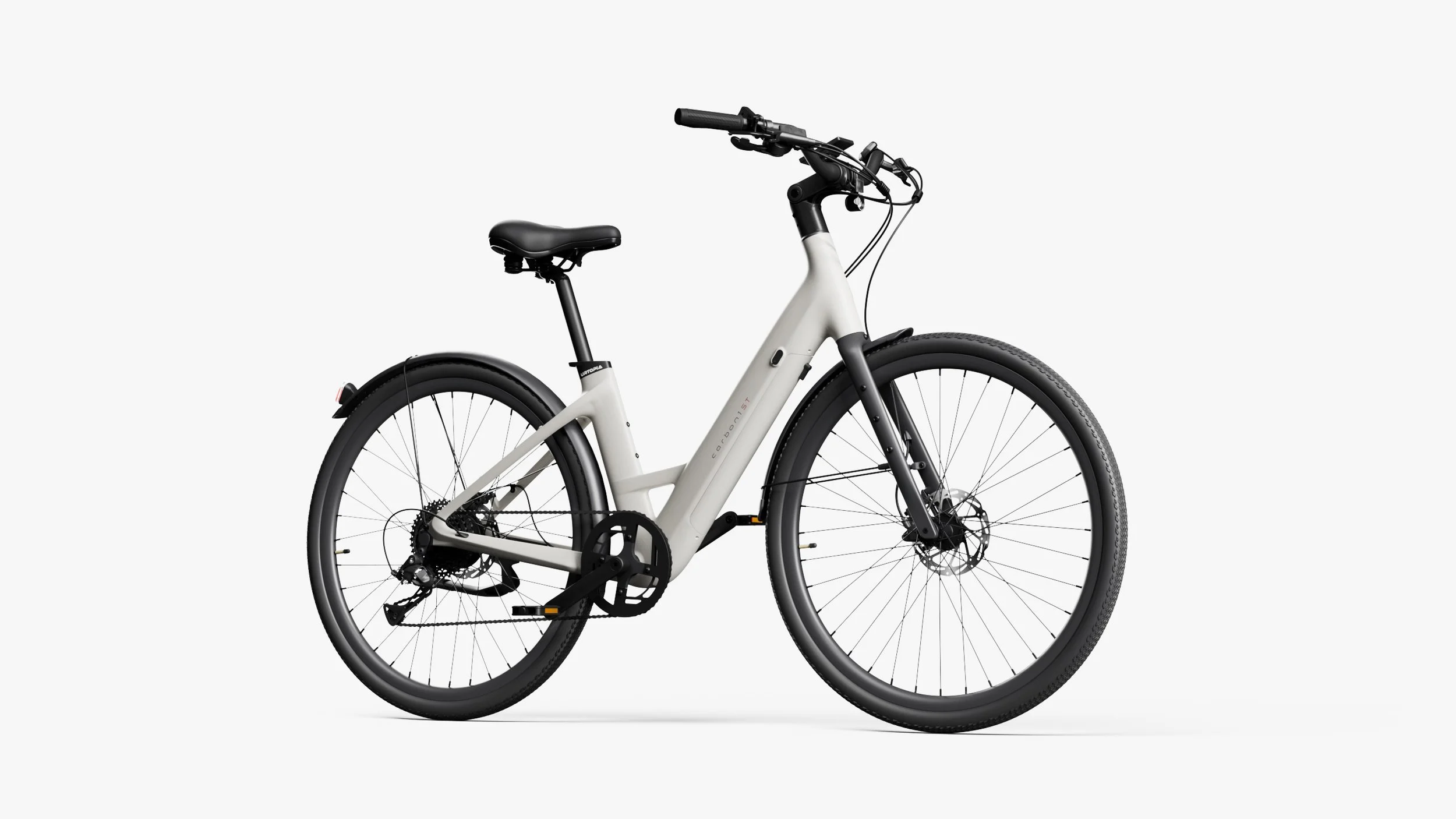

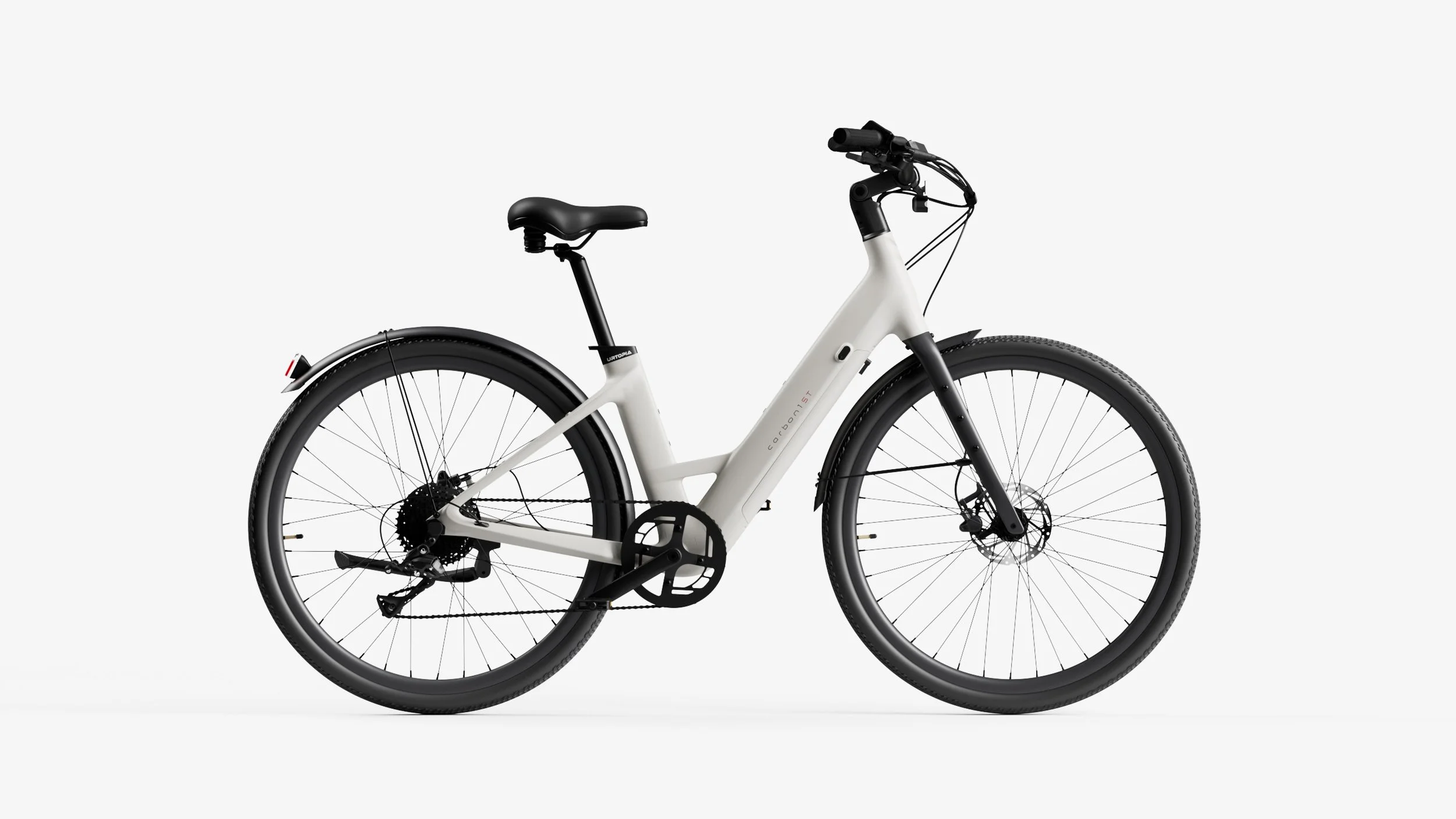

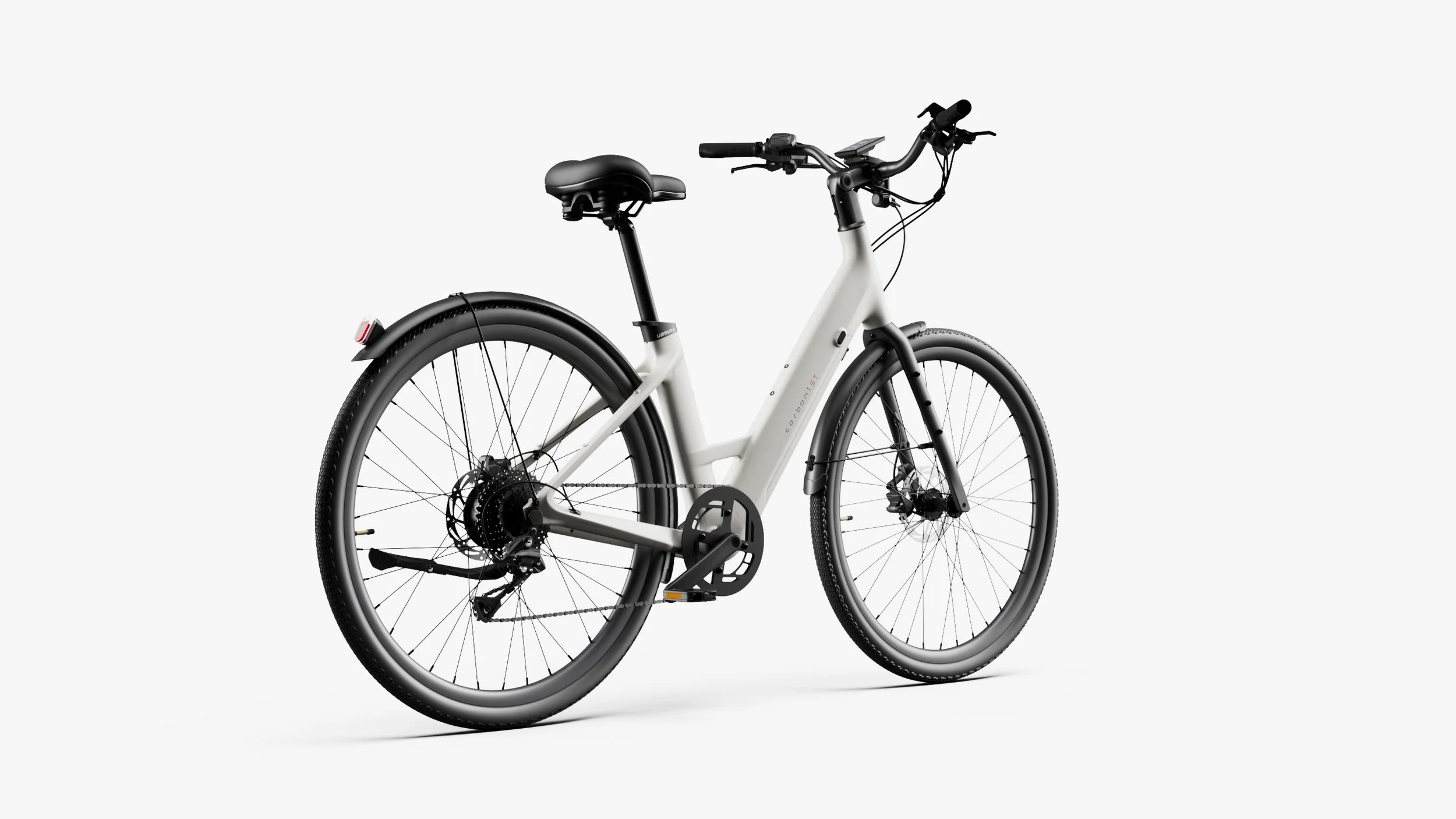

• Creme

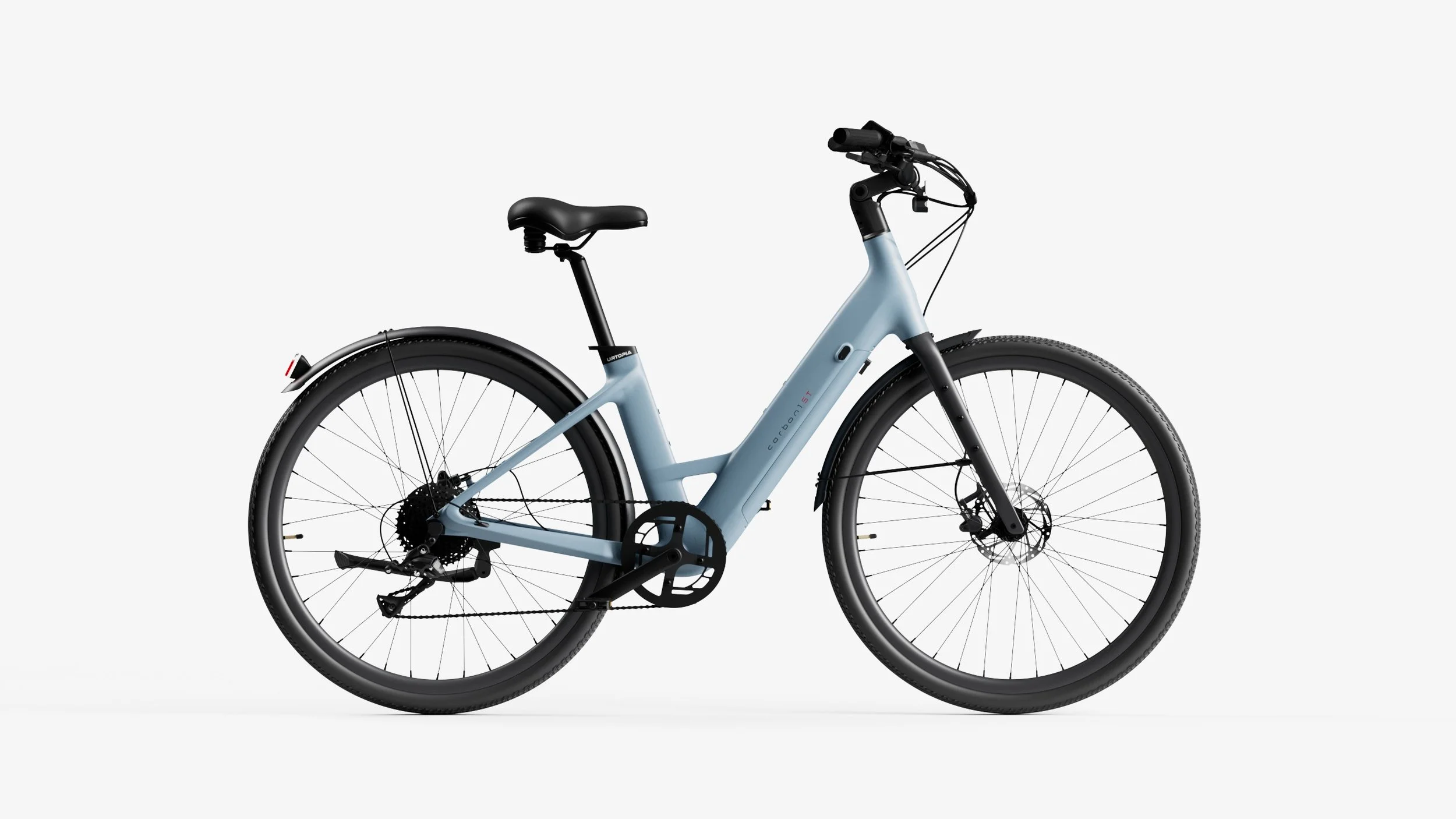

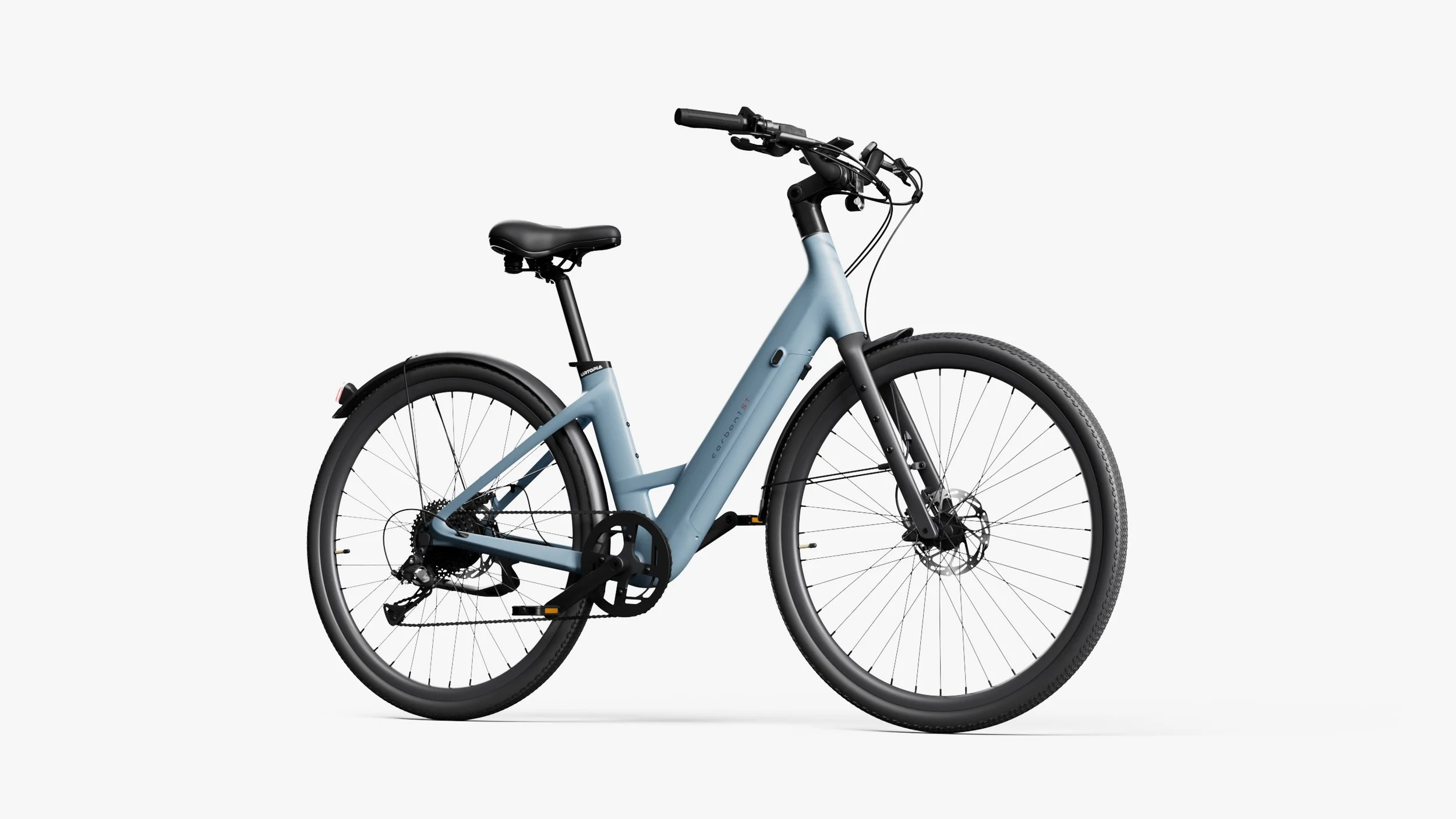

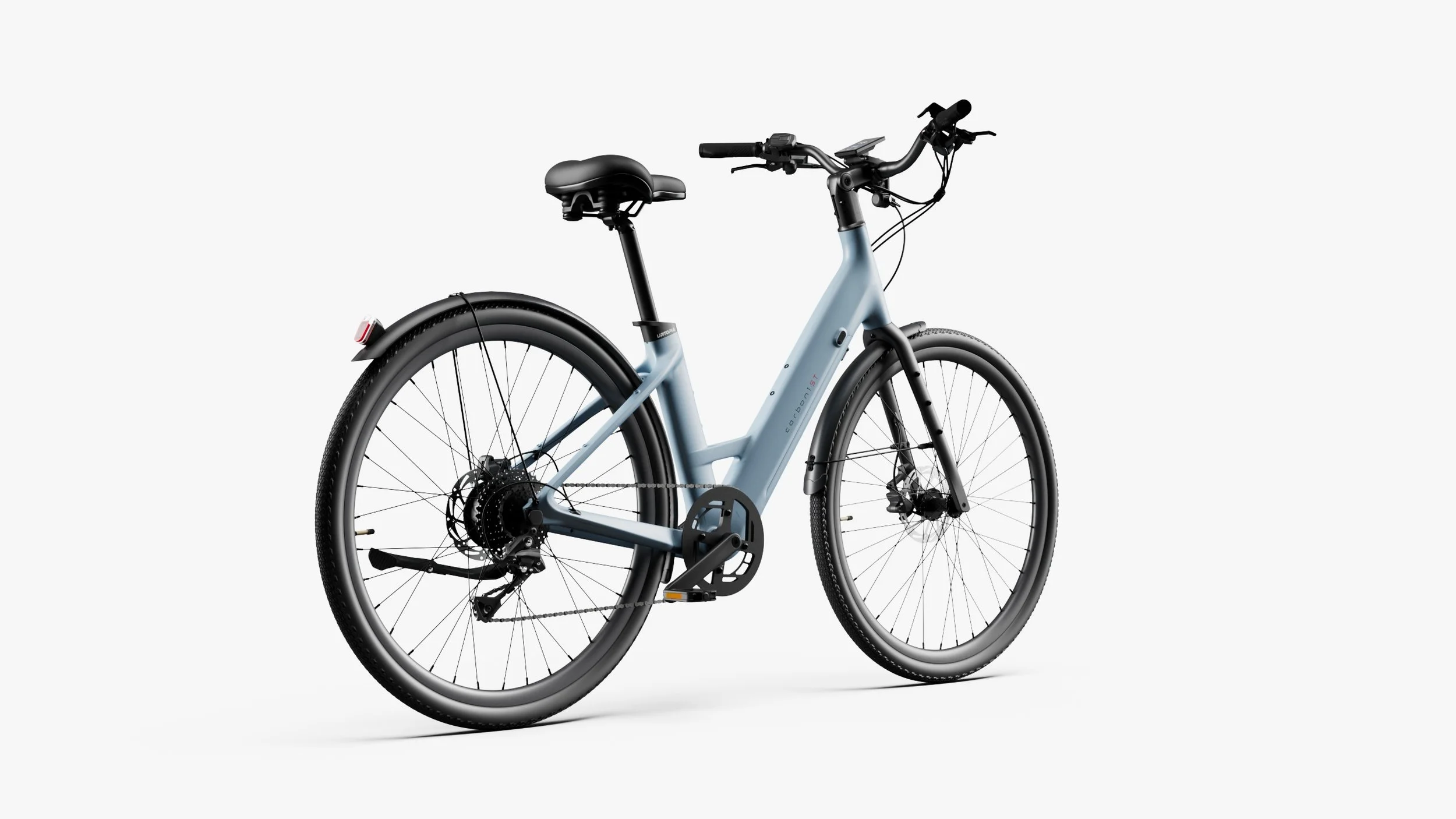

• Glacier Blue

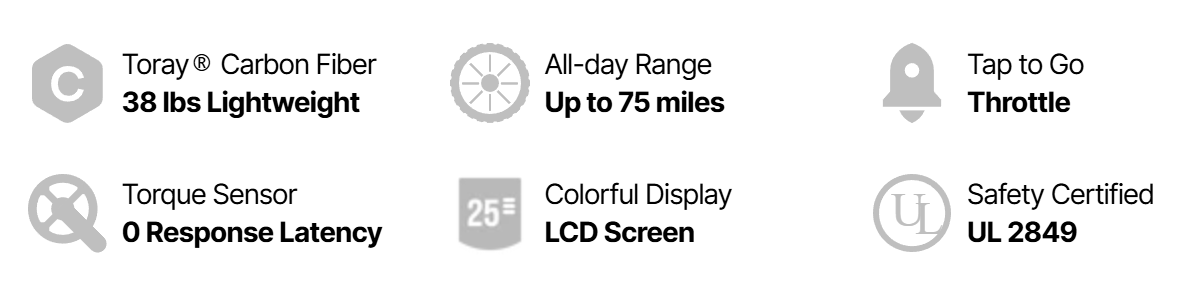

Built with aerospace-grade Toray™ carbon fiber, the Carbon Classic is 50% lighter than aluminum yet incredibly strong. Its sleek carbon frame, torque sensor, and throttle deliver effortless control and instant acceleration — redefining smooth, powerful riding.

Net Weight
38 lbs (without accessories)

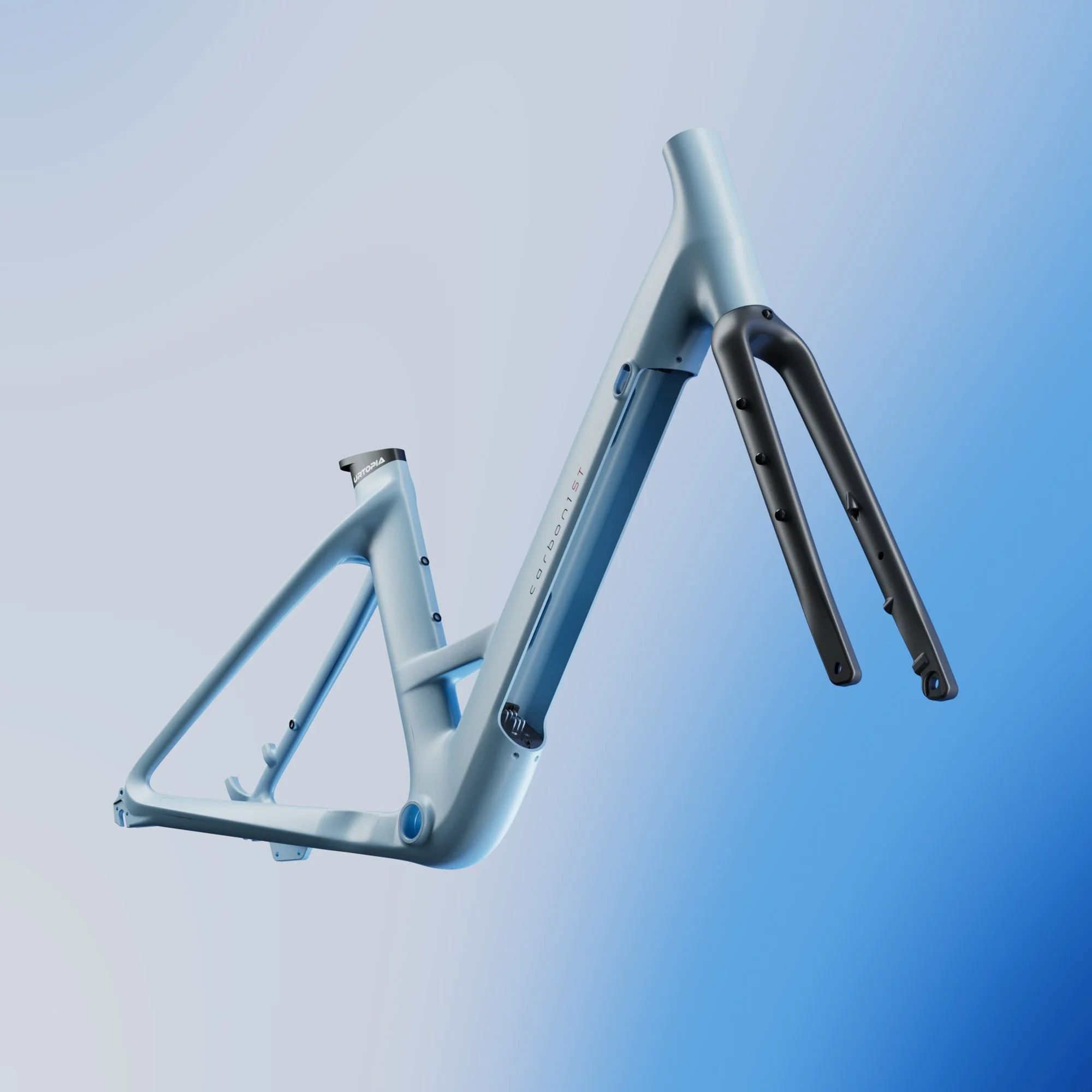

Frame & Fork Material
Carbon Fiber

Range
Up to 75 Miles
Tested with a 180 lb rider in ECO mode on flat roads

Top Speed
20 MPH (default)
25 MPH (unlockable)

Total Weight Limit
240 lbs

Recommended Rider Height
5’3” – 6’5”

Water Resistance
IP65

Brakes

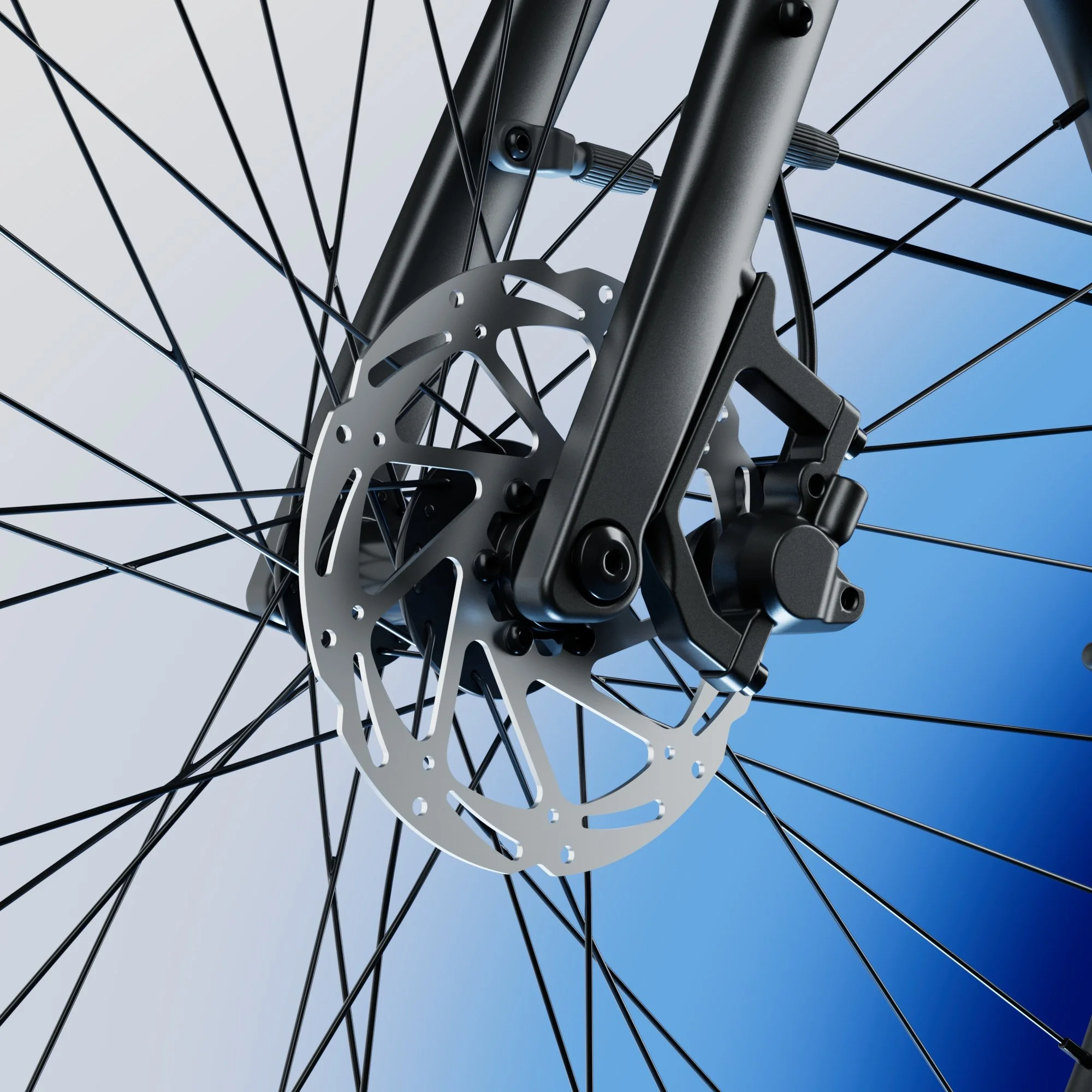

TEKTRO Hydraulic Disc Brakes with Power Cut-Off Sensor

Wheels & Tires
700C Wheels (ISO 622mm BSD)
40C Tires (Up to 45C Max), Puncture-Proof

E-Bike System

Class
Class 2

Motor

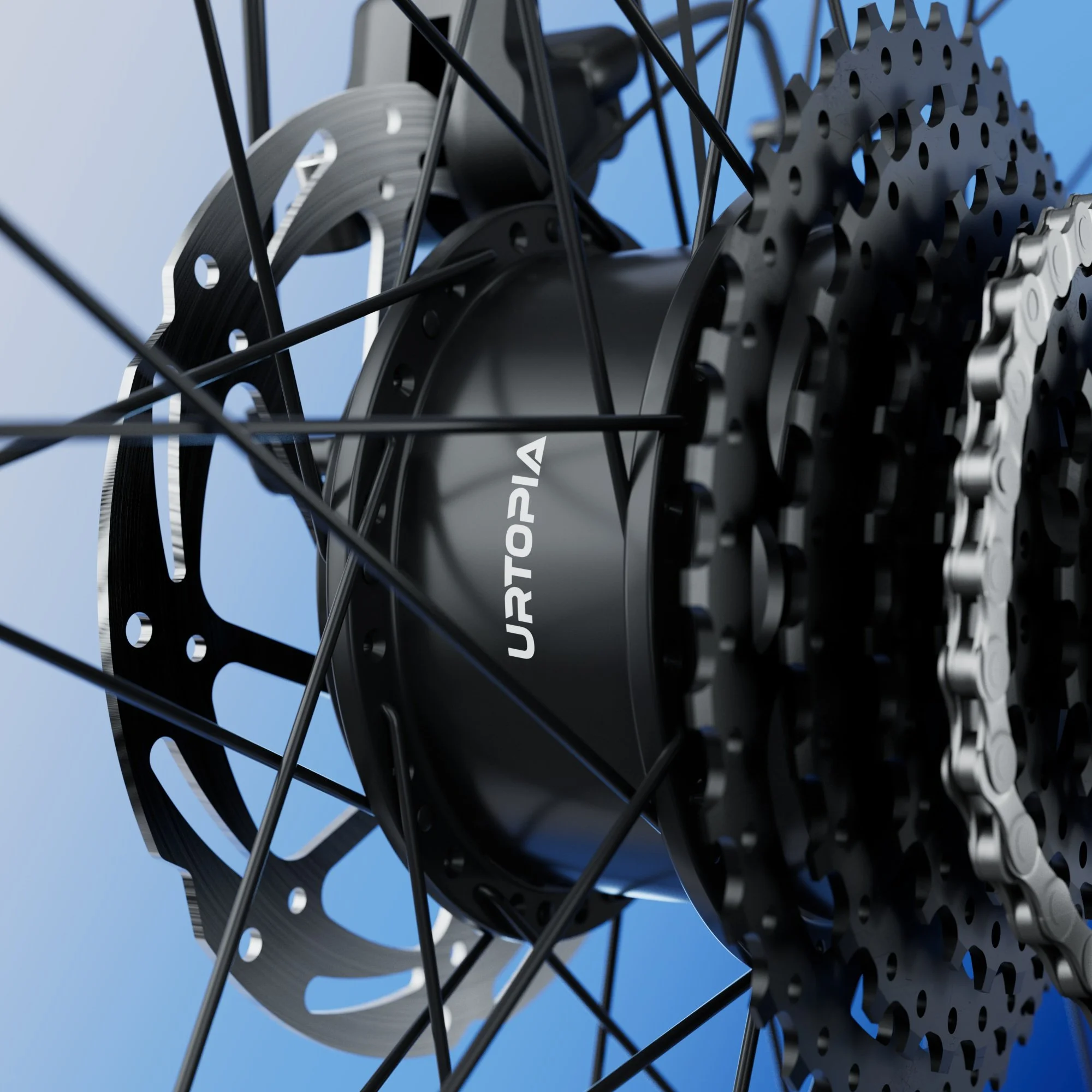

Rear Hub Motor
750W Peak Power | 60Nm Torque

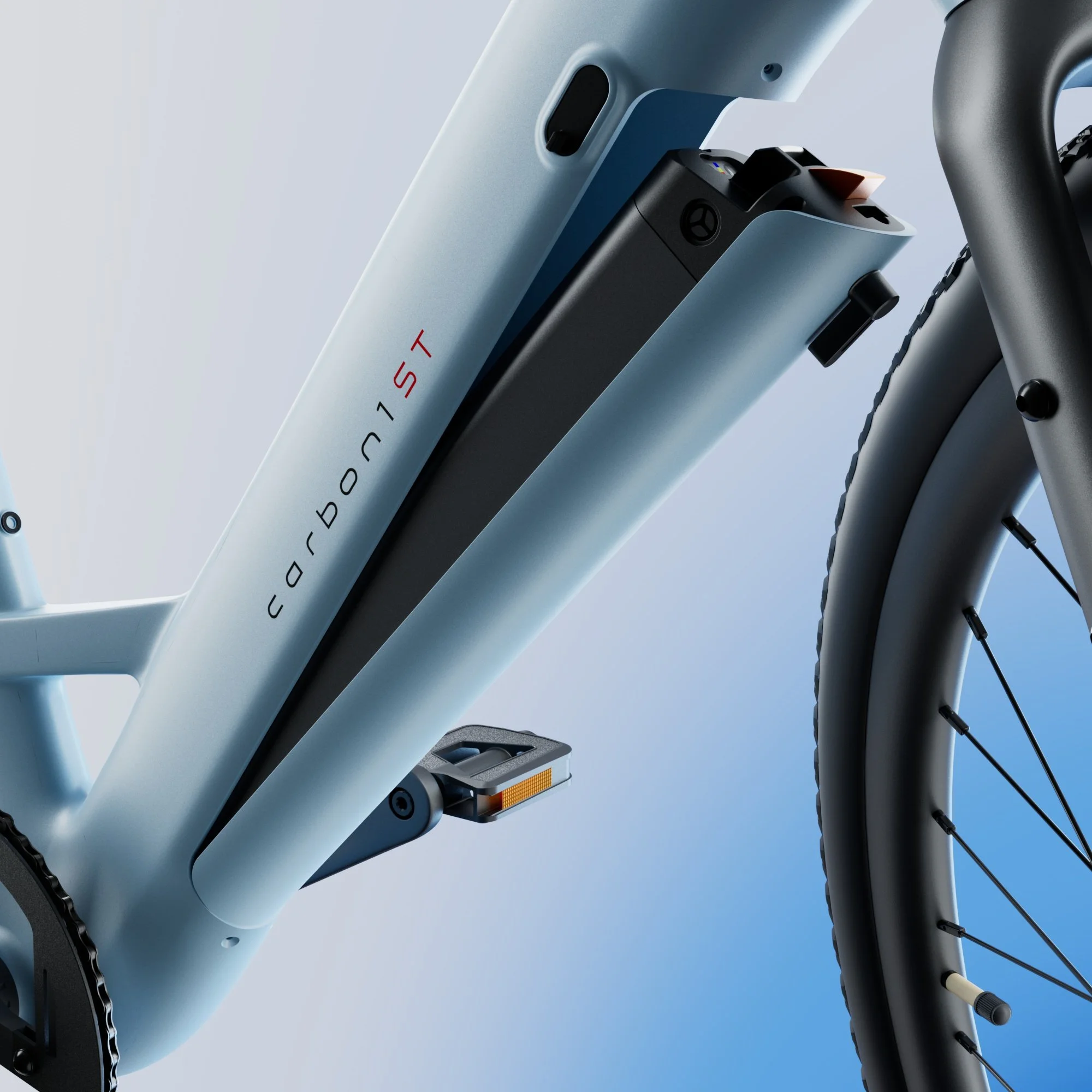

Battery
352.8Wh Samsung Lithium-Ion Battery
UL-2271 Certified | Removable

Pedal Assist
5 Levels

Charger
2.5-Hour Fast Charger

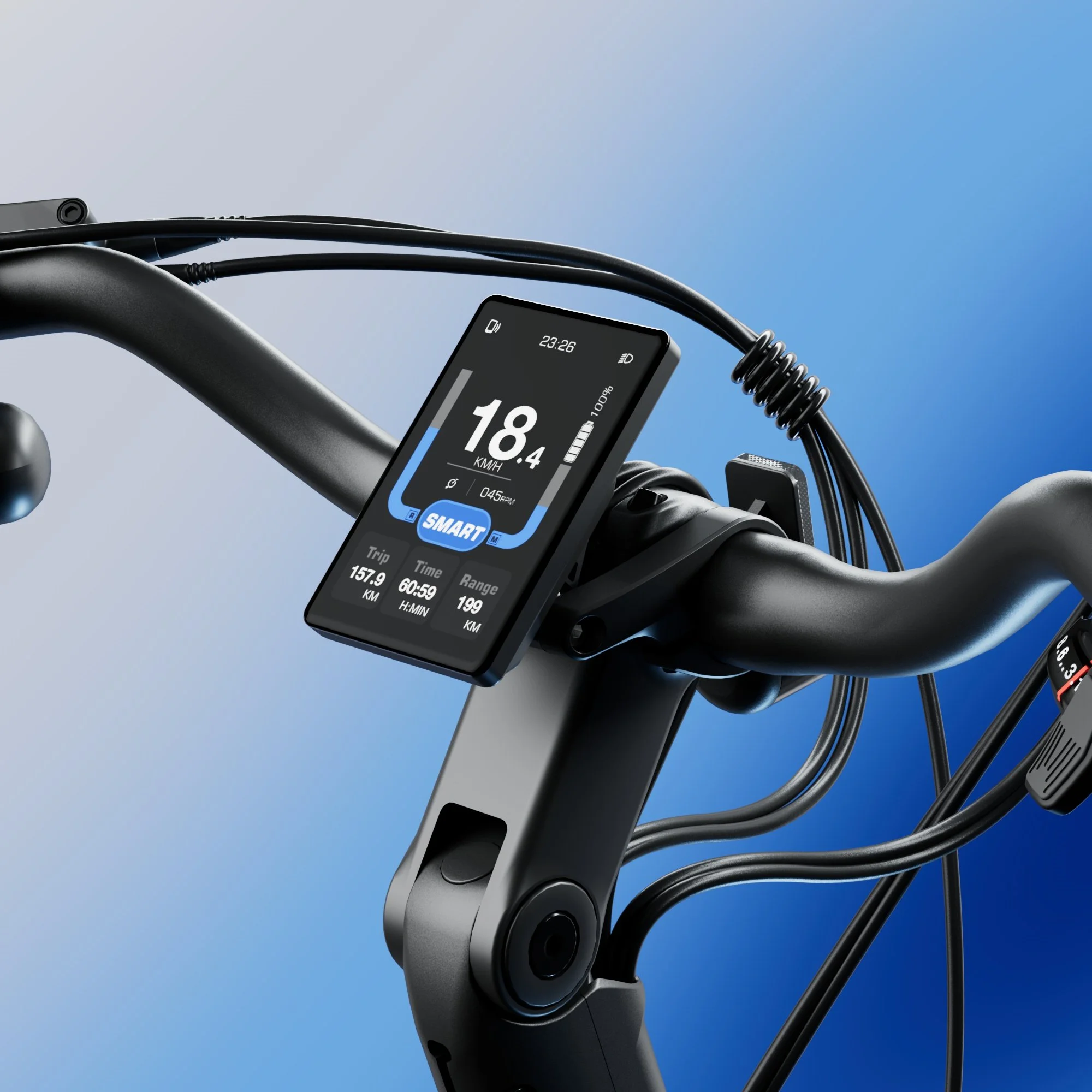

Display
3.5" Color LCD Display

Sensor
Torque Sensor

Lighting & Safety

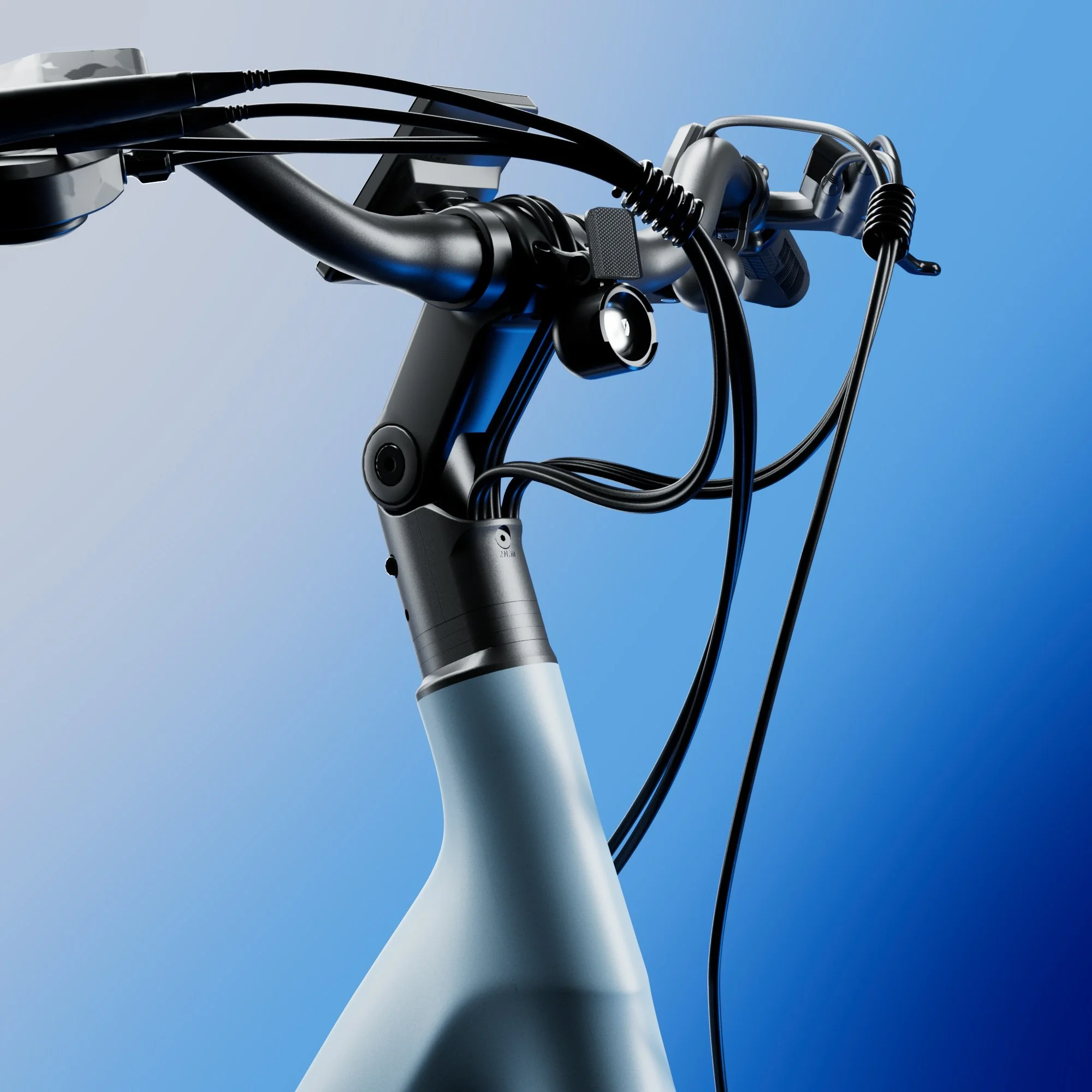

Front Light
External Headlight, 30 Lux

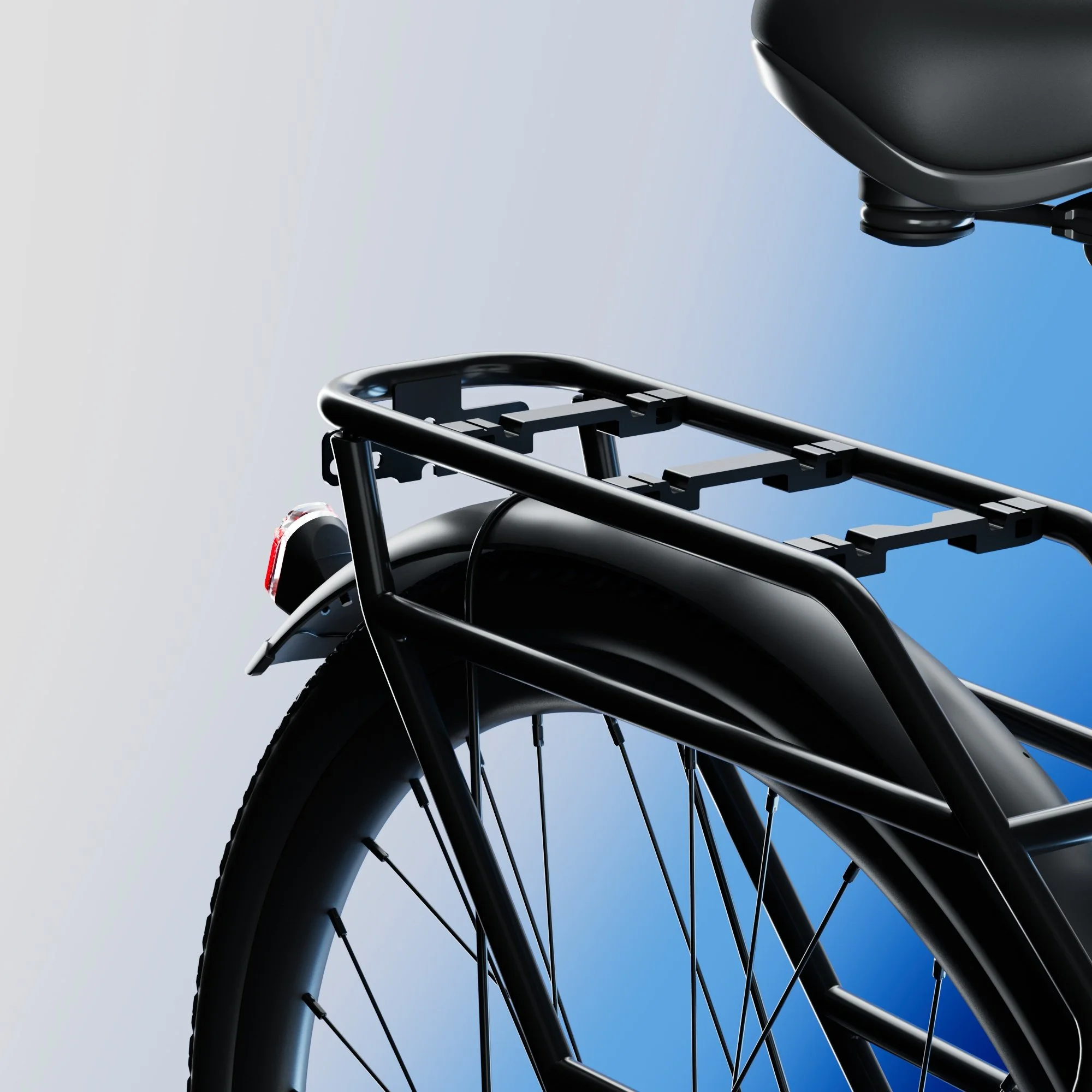

Rear Light
External Rear Light (Non-ARES)

Drivetrain

Chainring
44T

Crankset
Aluminum Alloy, 170mm

Cassette
11–40T, 8-Speed

Chain
Shimano 8-Speed

Rear Derailleur
Shimano 8-Speed

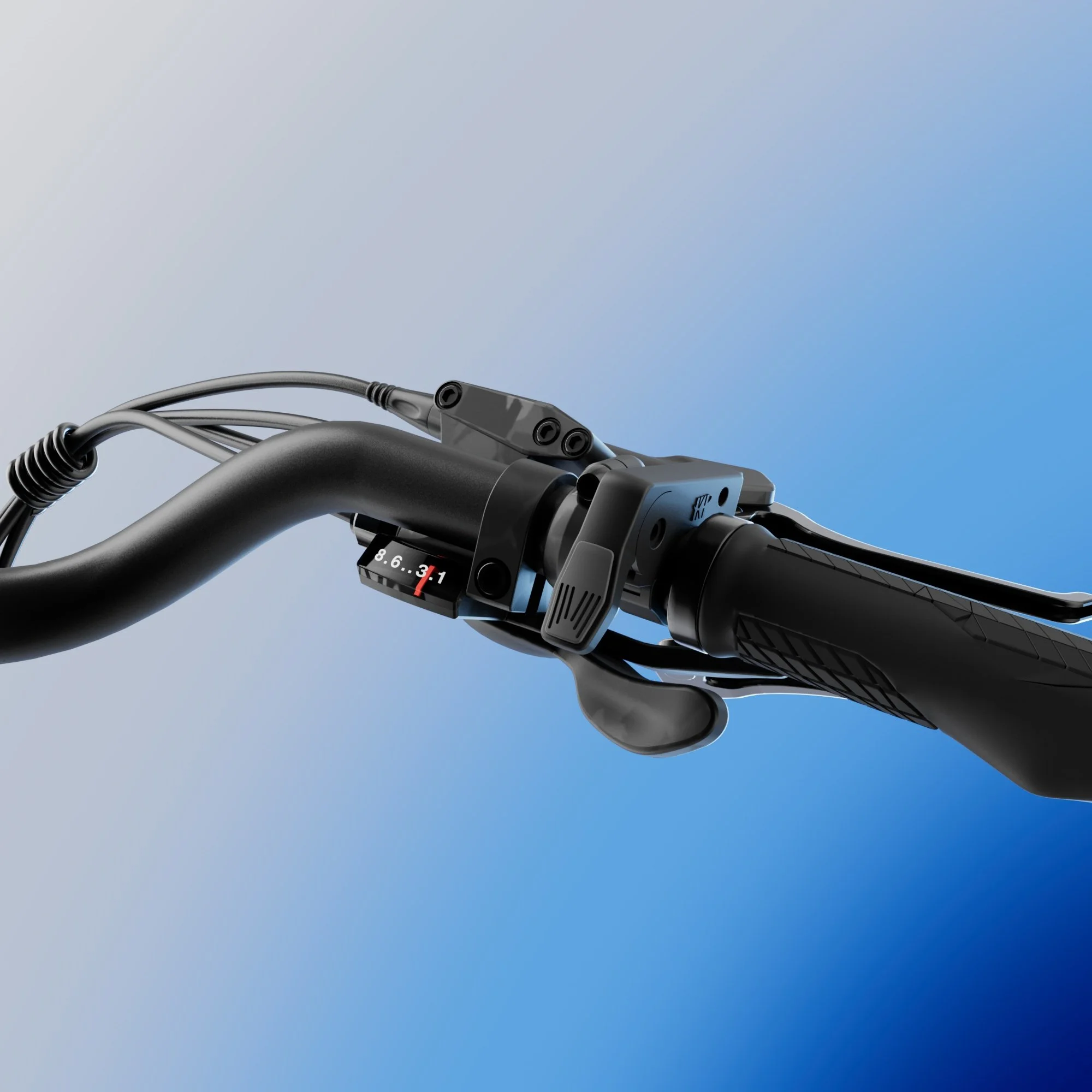

Shifter
8-Speed Trigger

Pedals
9/16" Alloy Platform

Cockpit & Fit

Grips
Durable, Ergonomic, Lock-On Grips

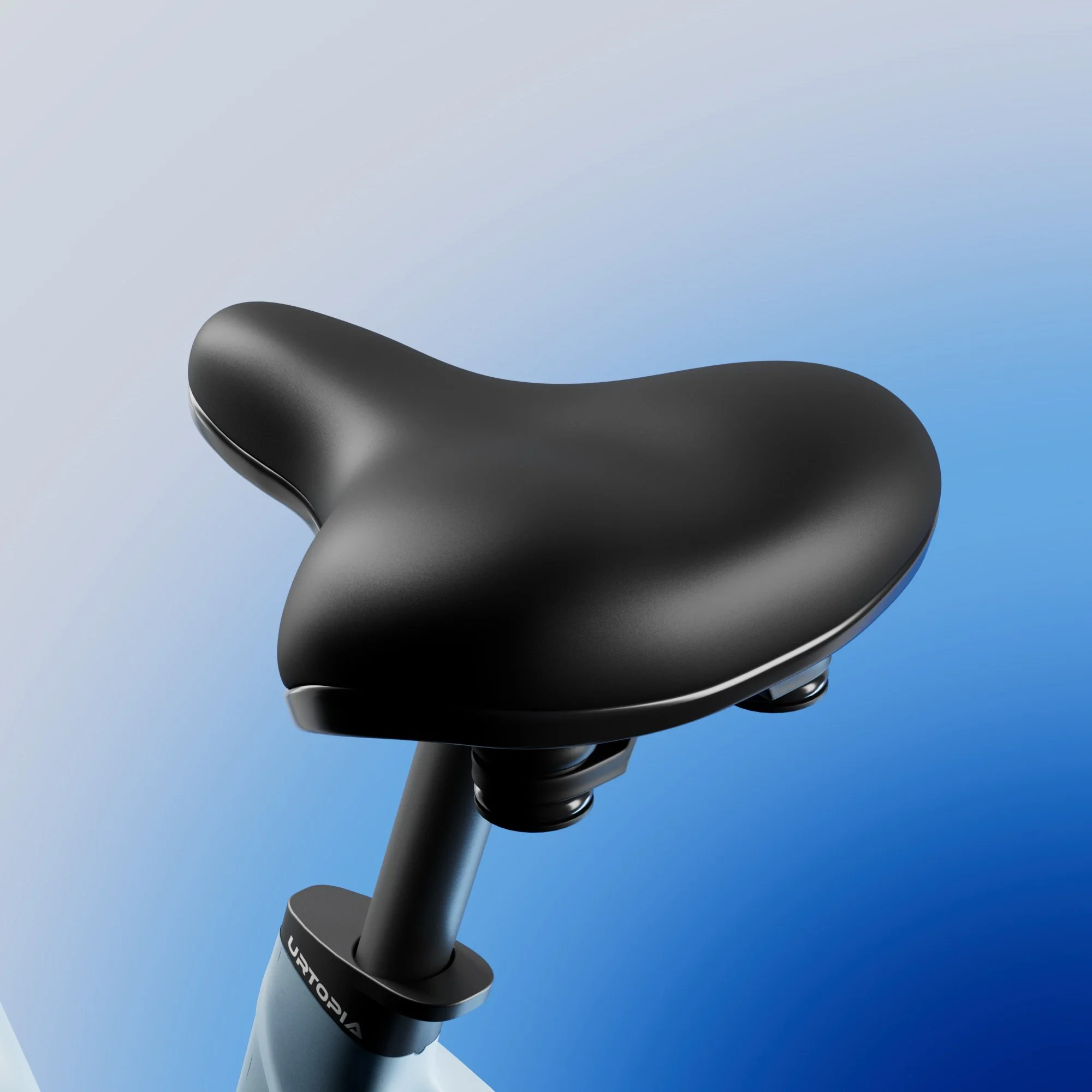

Seatpost
Aluminum Alloy
Ø31.6mm
300mm (Size M & L)
250mm (Size S)
