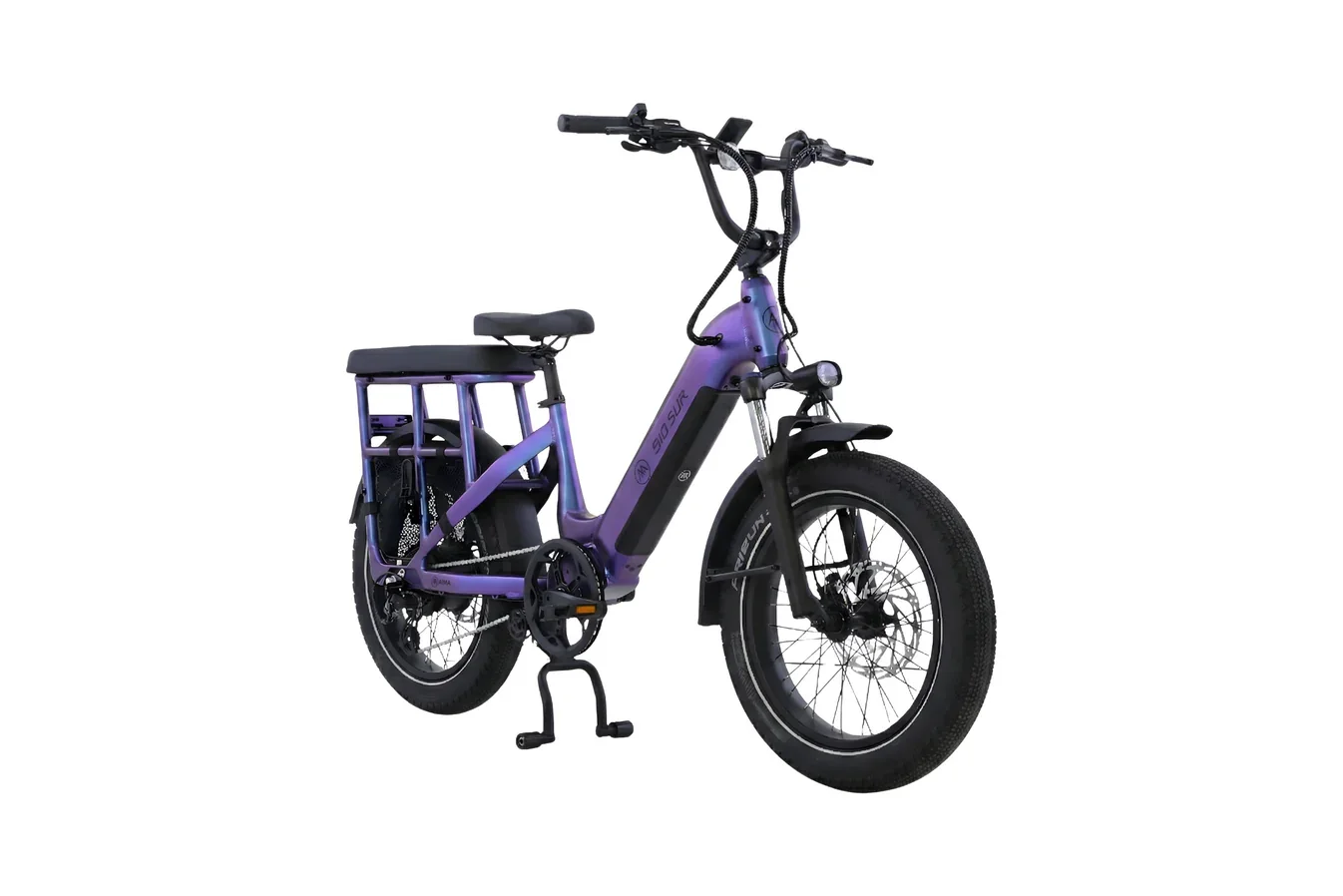

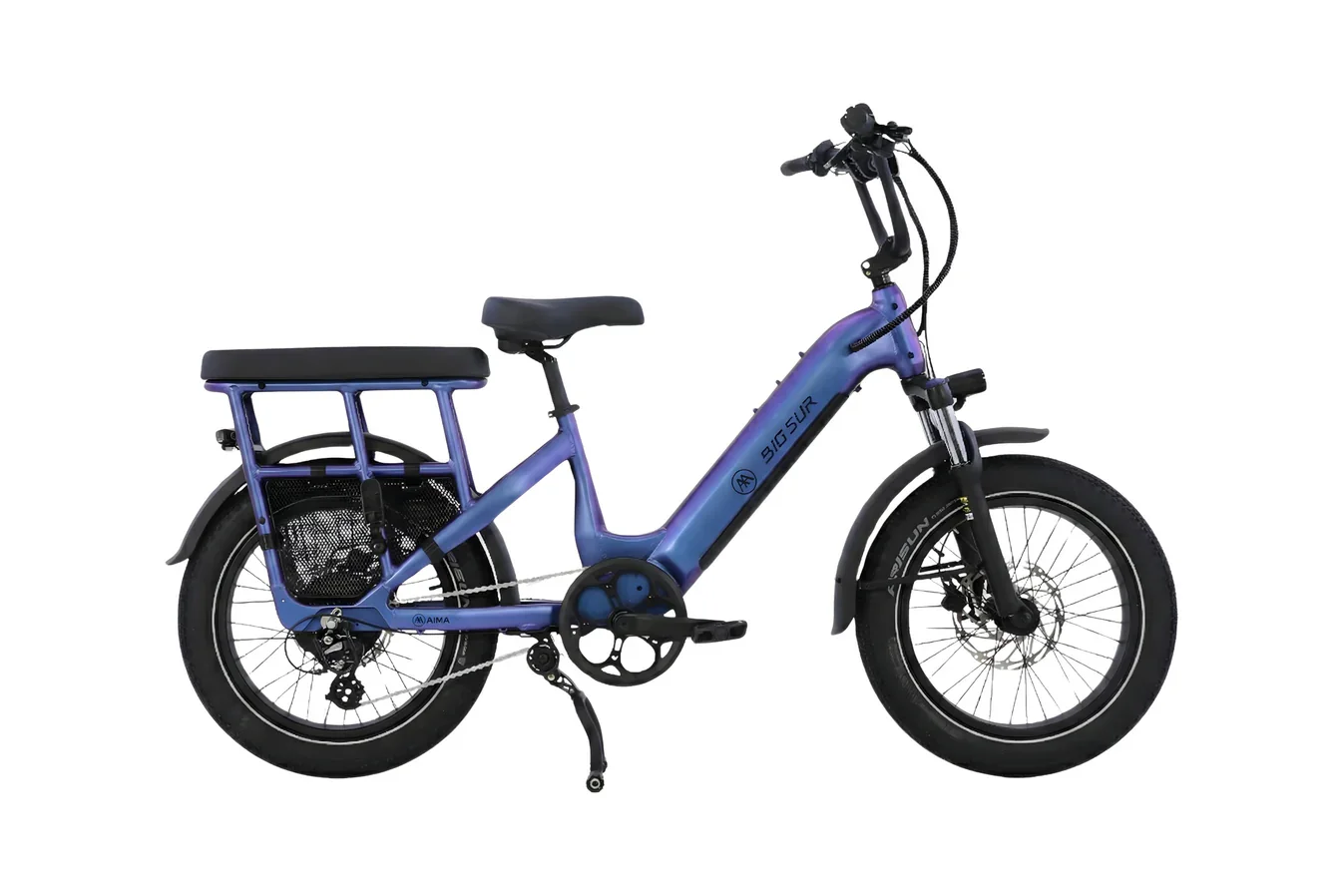

Aima Big Sur U Cargo

Available in colors:

• Cosmic Purple

AIMA E-Bike is proud to present the Big Sur, our first e-bike model. Inspired by the rugged terrain and sweeping vistas of California's Big Sur coastline, infused with a deep appreciation for the beauty of the natural world, and a commitment to cutting-edge engineering, crafted with meticulous attention to detail, AIMA E-Bike is designed in California and manufactured in the world's largest E-Mobility factory. We prioritize safety, performance, aesthetics, and integrity in every step of the manufacturing process, with a mission to deliver you the perfect companion for your next big ride.

Specifications

Motor
BAFANG Rear Hub Motor, 750W
Peak Power: 1200W | Max Torque: 85Nm

Throttle
Throttle on Demand

Display
BAFANG E-System TFT Display
Smart Functions: Find My, Navigation, Calls & Notifications

Top Speed
20 MPH

Certification
UL 2849 Compliant

Battery
Removable Internal Lithium-Ion, 48V 15Ah (720Wh)

Range
30–60 Miles

Pedal Assist
5 Levels (Torque & Cadence Modes)

Charger
48V 3A Fast Charger (≈5 Hours Full Charge)

Frame & Suspension

Frame
6061 Single-Butted Aluminum Alloy

Fork
ZOOM Suspension Fork
80mm Travel, Adjustable Preload & Lockout

Weight
80 lbs

Payload Capacity
400 lbs

Drivetrain & Brakes

Crankset
160mm with 52T Chainring

Shifter
Shimano 7-Speed

Derailleur
Shimano 7-Speed

Cassette
7-Speed, 11–28T

Chain
7-Speed

Brakes
Tektro Hydraulic Disc Brakes, 203mm Rotors

Wheels & Tires

Rims
Double-Wall Aluminum Alloy

Spokes
Black Stainless Steel, 12G Front / 12G Rear

Front Hub
Aluminum Alloy Disc Hub

Tires
20" x 3.5"

Tubes
Butyl Rubber

Components

Handlebars
Aluminum Alloy, Double Wall, 31.8mm, 680mm

Stem
Threadless, 31.8mm, 30° Rise, 50mm Length

Grips
Ergonomic Comfort

Saddle
AIMA Comfort Saddle

Seatpost
Aluminum Alloy, 30.9mm, 2-Bolt Clamp, 300mm

Seat Clamp
34.9mm Quick Release

Pedals
9/16" Alloy Platform

Kickstand
Aluminum Alloy

Headset
Sealed Bearing

Lighting & Safety

Lighting
Integrated Headlight, Tail Lights & Turn Signals with Horn
