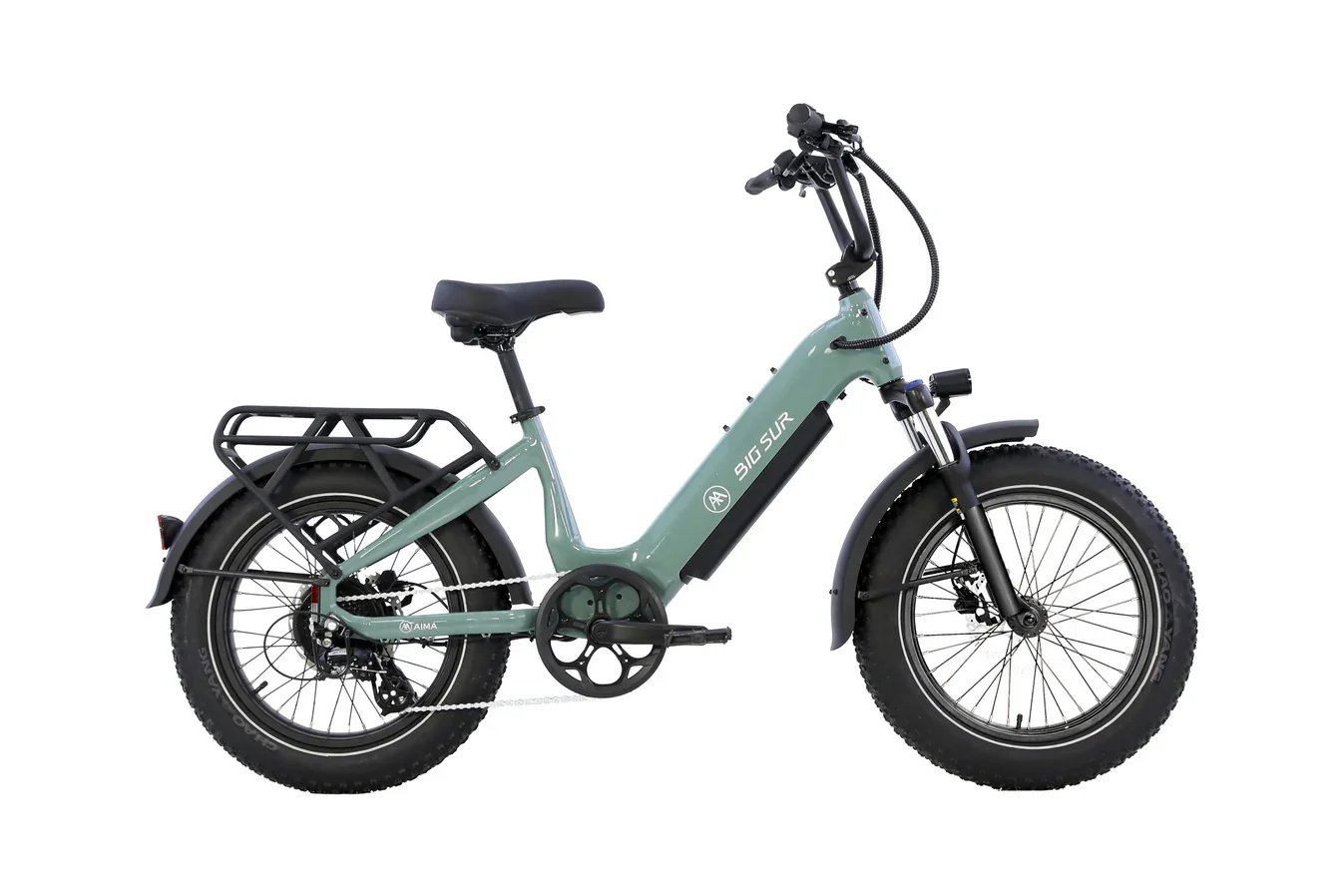

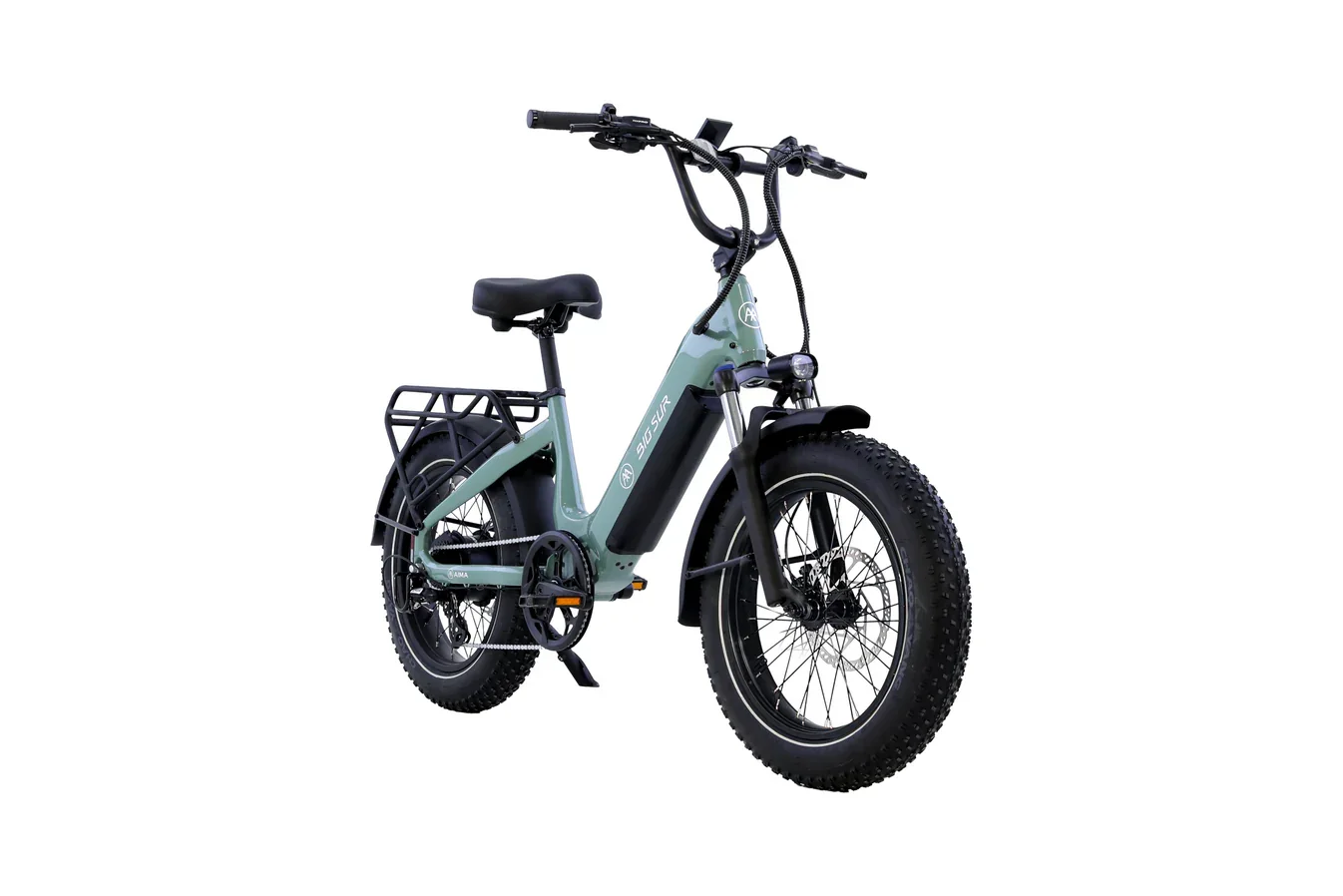

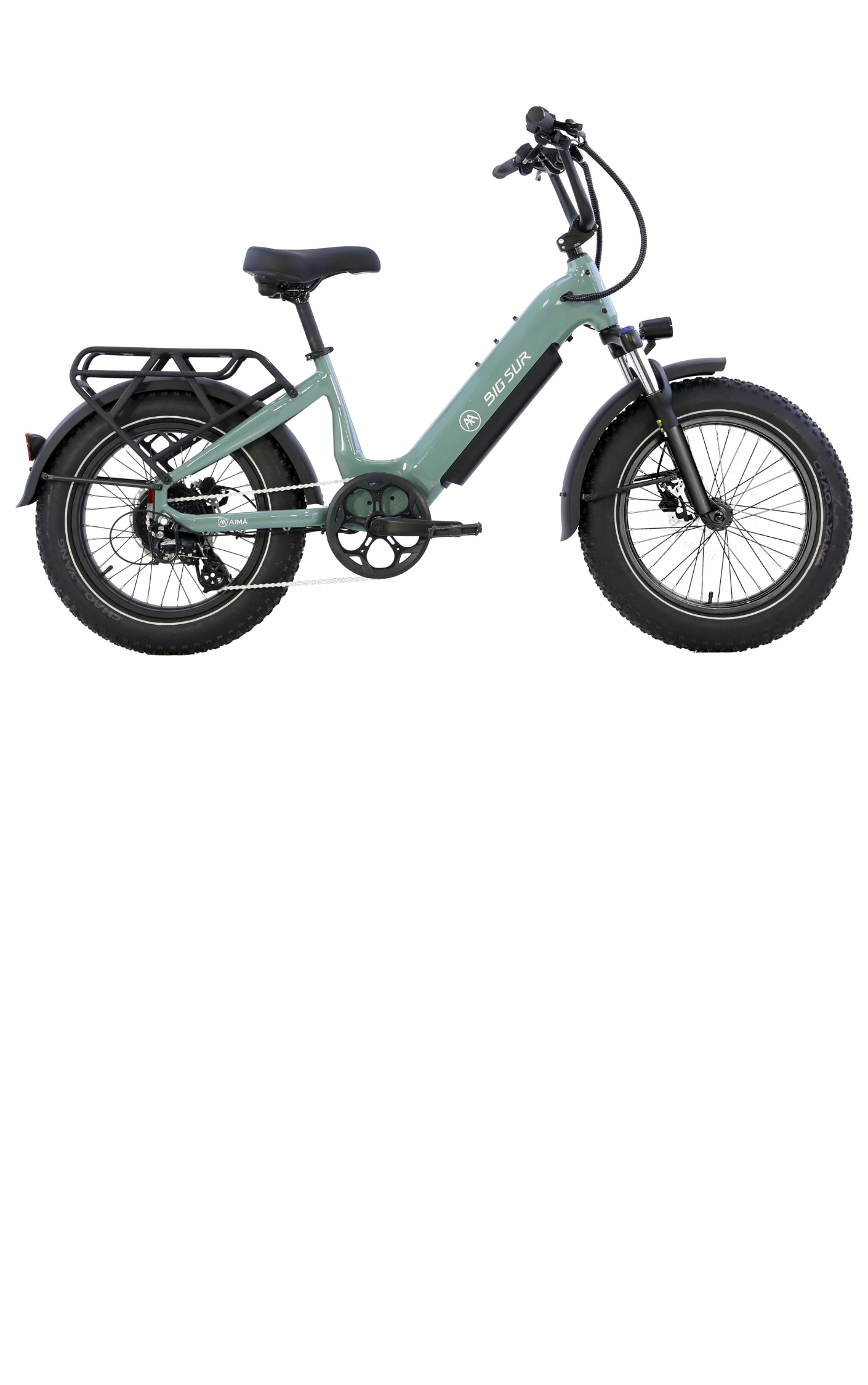

Aima Big Sur Sport 2.0

Available in colors:

• Sage Green

AIMA E-Bike is proud to present the Big Sur, our first e-bike model. Inspired by the rugged terrain and sweeping vistas of California's Big Sur coastline, infused with a deep appreciation for the beauty of the natural world, and a commitment to cutting-edge engineering, crafted with meticulous attention to detail, AIMA E-Bike is designed in California and manufactured in the world's largest E-Mobility factory. We prioritize safety, performance, aesthetics, and integrity in every step of the manufacturing process, with a mission to deliver you the perfect companion for your next big ride.

Specifications

• Motor: Rear Hub BAFANG, 750W

  • Peak Power: 1200W

  • Max Torque: 85Nm

• Throttle: Throttle on Demand

• Display: BAFANG E-System TFT Display

  • Smart Functions: FindMy, Navigation, Calls, Notifications

• Certification: UL 2849 Compliant

• Top Speed: 20 MPH

• Battery: Removable Internal Lithium-Ion, 48V, 20Ah (960Wh)

• Range: 40–75 Miles

• Charging: 48V 3A Fast Charger

  • Charge Time: 7–8 Hours

• Lighting: Integrated Headlight, Taillight & Turn Signals with Horn

• Pedal Sensor: Customizable Torque & Cadence Modes

• Pedal Assist: 5 PAS Levels

• Frame: 6061 Single-Butted Aluminum Alloy

• Fork: ZOOM Suspension Fork

  • 80mm Travel, Adjustable Preload & Lockout

• Brakes: Tektro Hydraulic Disc Brakes

  • 203mm Rotors

• Drivetrain: Shimano 7-Speed

  • Shifter: Shimano 7-Speed

  • Derailleur: Shimano 7-Speed

  • Cassette: 11–28T

  • Chain: 7-Speed

• Crankset: 160mm with 52T Chainring

• Pedals: 9/16" Alloy Platform

• Wheels:

  • Rims: Double-Wall Aluminum Alloy

  • Spokes: Black Stainless Steel, 12G Front / 12G Rear

  • Front Hub: Aluminum Alloy Disc

• Tires: 20" x 4.0"

• Tubes: Butyl Rubber

• Saddle: AIMA Comfort Saddle

• Seatpost: Aluminum Alloy, 30.9mm, 2-Bolt Clamp, 300mm

• Stem: Threadless, 31.8mm, 30° Rise, 50mm Length

• Handlebars: Aluminum Alloy Double-Wall, 31.8mm, 680mm

• Grips: Ergonomic Comfort

• Headset: Sealed Bearing

• Seat Clamp: 34.9mm Quick Release

• Kickstand: Aluminum Alloy

• Payload Capacity: 400 lbs

• Weight: 77 lbs
